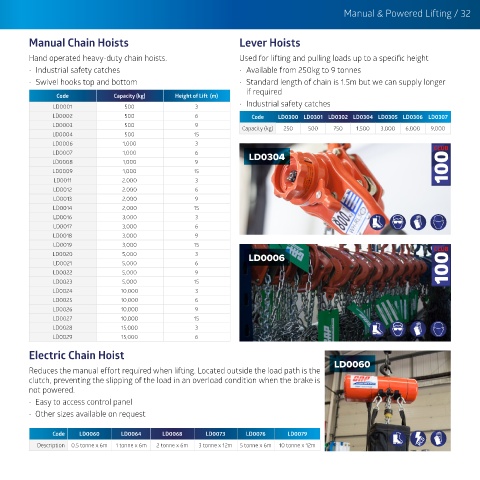

Manual & Powered Lifting / 32

Manual Chain Hoists Lever Hoists

Hand operated heavy-duty chain hoists. Used for lifting and pulling loads up to a specific height
• Industrial safety catches • Available from 250kg to 9 tonnes
• Swivel hooks top and bottom • Standard length of chain is 1.5m but we can supply longer
if required
Code Capacity (kg) Height of Lift (m)
LD0001 500 3 • Industrial safety catches
LD0002 500 6 Code LD0300 LD0301 LD0302 LD0304 LD0305 LD0306 LD0307
LD0003 500 9 Capacity (kg) 250 500 750 1,500 3,000 6,000 9,000
LD0004 500 15
LD0006 1,000 3
LD0007 1,000 6 LD0304
LD0008 1,000 9
LD0009 1,000 15
LD0011 2,000 3
LD0012 2,000 6
LD0013 2,000 9
LD0014 2,000 15
LD0016 3,000 3
LD0017 3,000 6
LD0018 3,000 9
LD0019 3,000 15
LD0020 5,000 3 LD0006
LD0021 5,000 6
LD0022 5,000 9
LD0023 5,000 15
LD0024 10,000 3
LD0025 10,000 6
LD0026 10,000 9
LD0027 10,000 15
LD0028 15,000 3
LD0029 15,000 6
Electric Chain Hoist
Reduces the manual effort required when lifting. Located outside the load path is the LD0060
clutch, preventing the slipping of the load in an overload condition when the brake is
not powered.
• Easy to access control panel
• Other sizes available on request

Code LD0060 LD0064 LD0068 LD0073 LD0076 LD0079
Description 0.5 tonne x 6m 1 tonne x 6m 2 tonne x 6m 3 tonne x 12m 5 tonne x 6m 10 tonne x 12m
