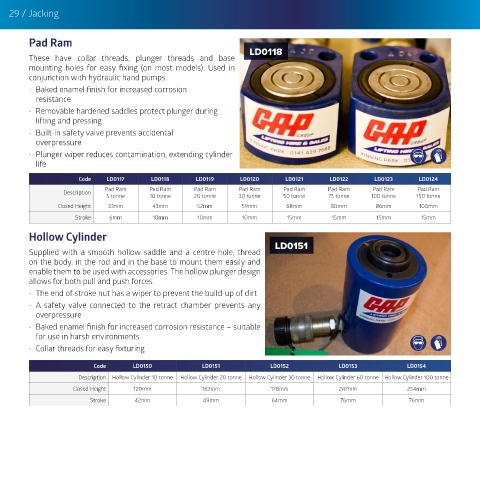

29 / Jacking

Pad Ram LD0118

These have collar threads, plunger threads and base
mounting holes for easy fixing (on most models). Used in
conjunction with hydraulic hand pumps.
• Baked enamel finish for increased corrosion
resistance
• Removable hardened saddles protect plunger during
lifting and pressing
• Built-in safety valve prevents accidental
overpressure
• Plunger wiper reduces contamination, extending cylinder
life

Code LD0117 LD0118 LD0119 LD0120 LD0121 LD0122 LD0123 LD0124
Pad Ram Pad Ram Pad Ram Pad Ram Pad Ram Pad Ram Pad Ram Pad Ram
Description
5 tonne 10 tonne 20 tonne 30 tonne 50 tonne 75 tonne 100 tonne 150 tonne
Closed Height 33mm 43mm 52mm 59mm 68mm 80mm 86mm 100mm
Stroke 6mm 10mm 10mm 10mm 15mm 15mm 15mm 15mm

Hollow Cylinder
Supplied with a smooth hollow saddle and a centre hole, thread LD0151
on the body, in the rod and in the base to mount them easily and
enable them to be used with accessories. The hollow plunger design
allows for both pull and push forces.
• The end of stroke nut has a wiper to prevent the build-up of dirt
• A safety valve connected to the retract chamber prevents any
overpressure
• Baked enamel finish for increased corrosion resistance – suitable
for use in harsh environments
• Collar threads for easy fixturing

Code LD0150 LD0151 LD0152 LD0153 LD0154
Description Hollow Cylinder 10 tonne Hollow Cylinder 20 tonne Hollow Cylinder 30 tonne Hollow Cylinder 60 tonne Hollow Cylinder 100 tonne
Closed Height 120mm 162mm 178mm 247mm 254mm
Stroke 42mm 49mm 64mm 76mm 76mm
