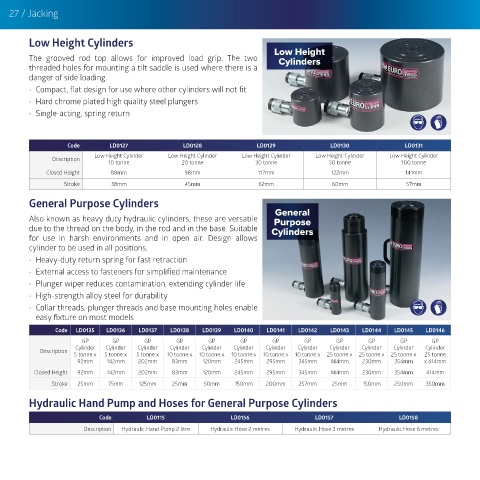

27 / Jacking

Low Height Cylinders Low Height

The grooved rod top allows for improved load grip. The two Cylinders
threaded holes for mounting a tilt saddle is used where there is a
danger of side loading.
• Compact, flat design for use where other cylinders will not fit
• Hard chrome plated high quality steel plungers
• Single-acting, spring return

Code LD0127 LD0128 LD0129 LD0130 LD0131
Low Height Cylinder Low Height Cylinder Low Height Cylinder Low Height Cylinder Low Height Cylinder
Description 10 tonne 20 tonne 30 tonne 50 tonne 100 tonne
Closed Height 88mm 98mm 117mm 122mm 141mm
Stroke 38mm 45mm 62mm 60mm 57mm
General Purpose Cylinders General

Also known as heavy duty hydraulic cylinders, these are versatile Purpose
due to the thread on the body, in the rod and in the base. Suitable Cylinders
for use in harsh environments and in open air. Design allows
cylinder to be used in all positions.
• Heavy-duty return spring for fast retraction
• External access to fasteners for simplified maintenance
• Plunger wiper reduces contamination, extending cylinder life
• High-strength alloy steel for durability
• Collar threads, plunger threads and base mounting holes enable
easy fixture on most models

Code LD0135 LD0136 LD0137 LD0138 LD0139 LD0140 LD0141 LD0142 LD0143 LD0144 LD0145 LD0146
GP GP GP GP GP GP GP GP GP GP GP GP
Description Cylinder Cylinder Cylinder Cylinder Cylinder Cylinder Cylinder Cylinder Cylinder Cylinder Cylinder Cylinder
5 tonne x 5 tonne x 5 tonne x 10 tonne x 10 tonne x 10 tonne x 10 tonne x 10 tonne x 25 tonne x 25 tonne x 25 tonne x 25 tonne
92mm 142mm 202mm 83mm 120mm 245mm 295mm 345mm 144mm 230mm 354mm x 414mm
Closed Height 92mm 142mm 202mm 83mm 120mm 245mm 295mm 345mm 144mm 230mm 354mm 414mm
Stroke 25mm 75mm 125mm 25mm 50mm 150mm 200mm 257mm 25mm 150mm 250mm 350mm
Hydraulic Hand Pump and Hoses for General Purpose Cylinders

Code LD0115 LD0156 LD0157 LD0158
Description Hydraulic Hand Pump 2 litre Hydraulic Hose 2 metres Hydraulic Hose 3 metres Hydraulic Hose 6 metres
