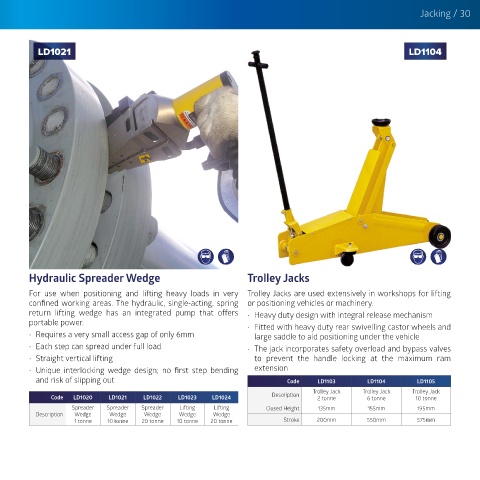

Jacking / 30

LD1021 LD1104

Hydraulic Spreader Wedge Trolley Jacks

For use when positioning and lifting heavy loads in very Trolley Jacks are used extensively in workshops for lifting
confined working areas. The hydraulic, single-acting, spring or positioning vehicles or machinery.
return lifting wedge has an integrated pump that offers • Heavy duty design with integral release mechanism
portable power. • Fitted with heavy duty rear swivelling castor wheels and
• Requires a very small access gap of only 6mm large saddle to aid positioning under the vehicle
• Each step can spread under full load • The jack incorporates safety overload and bypass valves
• Straight vertical lifting to prevent the handle locking at the maximum ram
• Unique interlocking wedge design; no first step bending extension
and risk of slipping out Code LD1103 LD1104 LD1105
Trolley Jack Trolley Jack Trolley Jack
Code LD1020 LD1021 LD1022 LD1023 LD1024 Description 2 tonne 6 tonne 10 tonne
Spreader Spreader Spreader Lifting Lifting Closed Height 135mm 155mm 195mm
Description Wedge Wedge Wedge Wedge Wedge
1 tonne 10 tonne 20 tonne 10 tonne 20 tonne Stroke 200mm 550mm 575mm
