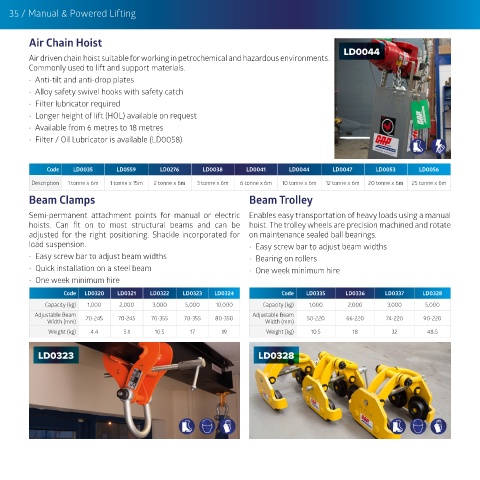

35 / Manual & Powered Lifting

Air Chain Hoist LD0044

Air driven chain hoist suitable for working in petrochemical and hazardous environments.
Commonly used to lift and support materials.
• Anti-tilt and anti-drop plates
• Alloy safety swivel hooks with safety catch
• Filter lubricator required
• Longer height of lift (HOL) available on request
• Available from 6 metres to 18 metres
• Filter / Oil Lubricator is available (LD0058)

Code LD0035 LD0559 LD0276 LD0038 LD0041 LD0044 LD0047 LD0053 LD0056
Description 1 tonne x 6m 1 tonne x 15m 2 tonne x 6m 3 tonne x 6m 6 tonne x 6m 10 tonne x 6m 12 tonne x 6m 20 tonne x 6m 25 tonne x 6m
Beam Clamps Beam Trolley
Semi-permanent attachment points for manual or electric Enables easy transportation of heavy loads using a manual
hoists. Can fit on to most structural beams and can be hoist. The trolley wheels are precision machined and rotate
adjusted for the right positioning. Shackle incorporated for on maintenance sealed ball bearings.
load suspension. • Easy screw bar to adjust beam widths
• Easy screw bar to adjust beam widths • Bearing on rollers
• Quick installation on a steel beam • One week minimum hire
• One week minimum hire

Code LD0320 LD0321 LD0322 LD0323 LD0324 Code LD0335 LD0336 LD0337 LD0328
Capacity (kg) 1,000 2,000 3,000 5,000 10,000 Capacity (kg) 1,000 2,000 3,000 5,000
Adjustable Beam Adjustable Beam
Width (mm) 70-245 70-245 70-355 70-355 80-350 Width (mm) 50-220 66-220 74-220 90-220
Weight (kg) 4.4 5.1 10.5 17 19 Weight (kg) 10.5 18 32 48.5

LD0323 LD0328
