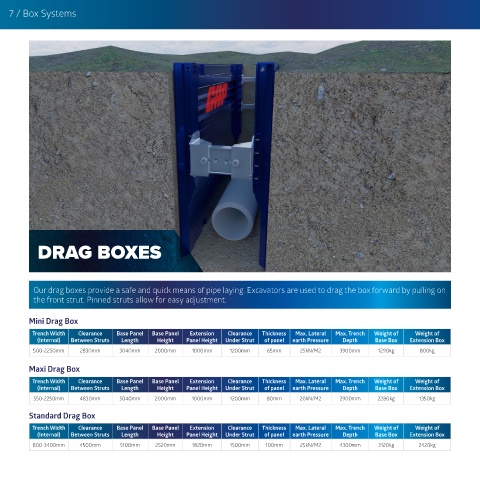

7 / Box Systems
DRAG BOXES
Our drag boxes provide a safe and quick means of pipe laying. Excavators are used to drag the box forward by pulling on
the front strut. Pinned struts allow for easy adjustment.
Mini Drag Box
Trench Width Clearance Base Panel Base Panel Extension Clearance Thickness Max. Lateral Max. Trench Weight of Weight of
(Internal) Between Struts Length Height Panel Height Under Strut of panel earth Pressure Depth Base Box Extension Box
500-2250mm 2830mm 3040mm 2000mm 1000mm 1200mm 65mm 25kN/M2 3900mm 1290kg 800kg
Maxi Drag Box
Trench Width Clearance Base Panel Base Panel Extension Clearance Thickness Max. Lateral Max. Trench Weight of Weight of
(Internal) Between Struts Length Height Panel Height Under Strut of panel earth Pressure Depth Base Box Extension Box
550-2250mm 4830mm 5040mm 2000mm 1000mm 1200mm 80mm 20kN/M2 2900mm 2280kg 1350kg
Standard Drag Box
Trench Width Clearance Base Panel Base Panel Extension Clearance Thickness Max. Lateral Max. Trench Weight of Weight of
(Internal) Between Struts Length Height Panel Height Under Strut of panel earth Pressure Depth Base Box Extension Box
800-3400mm 4500mm 5100mm 2520mm 1820mm 1500mm 100mm 25kN/M2 4300mm 3120kg 2420kg
