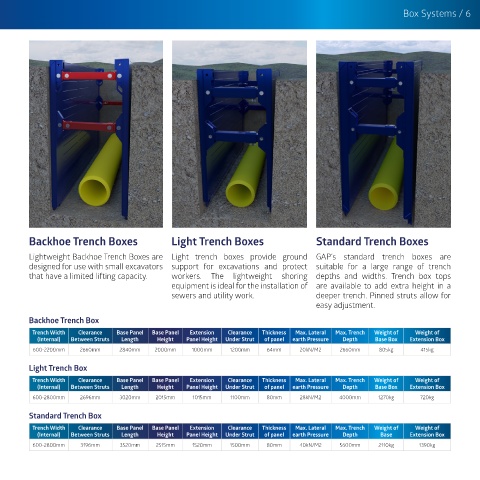

Page 7 - Trenching & Shoring E-Catalogue

Box Systems / 6

Backhoe Trench Boxes Light Trench Boxes Standard Trench Boxes

Lightweight Backhoe Trench Boxes are Light trench boxes provide ground GAP’s standard trench boxes are
designed for use with small excavators support for excavations and protect suitable for a large range of trench
that have a limited lifting capacity. workers. The lightweight shoring depths and widths. Trench box tops
equipment is ideal for the installation of are available to add extra height in a
sewers and utility work. deeper trench. Pinned struts allow for
easy adjustment.

Backhoe Trench Box
Trench Width Clearance Base Panel Base Panel Extension Clearance Thickness Max. Lateral Max. Trench Weight of Weight of
(Internal) Between Struts Length Height Panel Height Under Strut of panel earth Pressure Depth Base Box Extension Box
600-2200mm 2660mm 2840mm 2000mm 1000mm 1200mm 64mm 20kN/M2 2660mm 805kg 415kg
Light Trench Box
Trench Width Clearance Base Panel Base Panel Extension Clearance Thickness Max. Lateral Max. Trench Weight of Weight of
(Internal) Between Struts Length Height Panel Height Under Strut of panel earth Pressure Depth Base Box Extension Box
600-2800mm 2696mm 3020mm 2015mm 1015mm 1100mm 80mm 28kN/M2 4000mm 1270kg 720kg

Standard Trench Box
Trench Width Clearance Base Panel Base Panel Extension Clearance Thickness Max. Lateral Max. Trench Weight of Weight of
(Internal) Between Struts Length Height Panel Height Under Strut of panel earth Pressure Depth Base Extension Box
600-2800mm 3196mm 3520mm 2515mm 1520mm 1500mm 80mm 40kN/M2 5600mm 2110kg 1390kg
