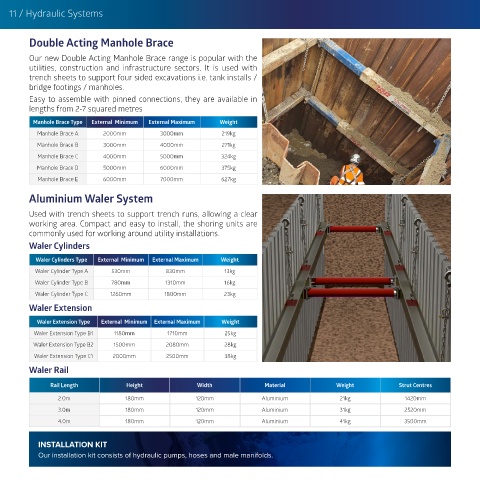

Page 12 - Trenching & Shoring E-Catalogue

11 / Hydraulic Systems

Double Acting Manhole Brace

Our new Double Acting Manhole Brace range is popular with the
utilities, construction and infrastructure sectors. It is used with
trench sheets to support four sided excavations i.e. tank installs /
bridge footings / manholes.
Easy to assemble with pinned connections, they are available in
lengths from 2-7 squared metres
Manhole Brace Type External Minimum External Maximum Weight
Manhole Brace A 2000mm 3000mm 219kg
Manhole Brace B 3000mm 4000mm 271kg
Manhole Brace C 4000mm 5000mm 324kg
Manhole Brace D 5000mm 6000mm 375kg
Manhole Brace E 6000mm 7000mm 627kg

Aluminium Waler System
Used with trench sheets to support trench runs, allowing a clear
working area. Compact and easy to install, the shoring units are
commonly used for working around utility installations.
Waler Cylinders

Waler Cylinders Type External Minimum External Maximum Weight
Waler Cylinder Type A 530mm 830mm 13kg
Waler Cylinder Type B 780mm 1310mm 16kg
Waler Cylinder Type C 1260mm 1800mm 23kg
Waler Extension
Waler Extension Type External Minimum External Maximum Weight
Waler Extension Type B1 1180mm 1710mm 25kg
Waler Extension Type B2 1500mm 2080mm 28kg
Waler Extension Type C1 2000mm 2500mm 38kg
Waler Rail

Rail Length Height Width Material Weight Strut Centres
2.0m 180mm 120mm Aluminium 21kg 1420mm
3.0m 180mm 120mm Aluminium 31kg 2520mm
4.0m 180mm 120mm Aluminium 41kg 3500mm

INSTALLATION KIT
Our installation kit consists of hydraulic pumps, hoses and male manifolds.
