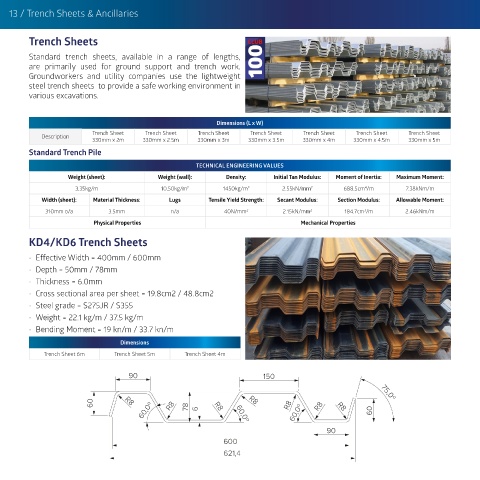

Page 14 - Trenching & Shoring E-Catalogue

13 / Trench Sheets & Ancillaries

Trench Sheets

Standard trench sheets, available in a range of lengths,
are primarily used for ground support and trench work.
Groundworkers and utility companies use the lightweight
steel trench sheets to provide a safe working environment in
various excavations.

Dimensions (L x W)
Trench Sheet Trench Sheet Trench Sheet Trench Sheet Trench Sheet Trench Sheet Trench Sheet
Description
330mm x 2m 330mm x 2.5m 330mm x 3m 330mm x 3.5m 330mm x 4m 330mm x 4.5m 330mm x 5m
Standard Trench Pile
TECHNICAL ENGINEERING VALUES
Weight (sheet): Weight (wall): Density: Initial Tan Modulus: Moment of Inertia: Maximum Moment:
4
3.35kg/m 10.50kg/m 2 1450kg/m 2 2.55kN/mm 2 688.5cm /m 7.38kNm/m
Width (sheet): Material Thickness: Lugs Tensile Yield Strength: Secant Modulus: Section Modulus: Allowable Moment:
310mm o/a 3.5mm n/a 40N/mm 2 2.15kN/mm 2 184.7cm /m 2.46kNm/m
3
Physical Properties Mechanical Properties
KD4/KD6 Trench Sheets

• Effective Width = 400mm / 600mm
• Depth = 50mm / 78mm
• Thickness = 6.0mm
• Cross sectional area per sheet = 19.8cm2 / 48.8cm2
• Steel grade = S275JR / S355
• Weight = 22.1 kg/m / 37.5 kg/m
• Bending Moment = 19 kn/m / 33.7 kn/m
Dimensions
Trench Sheet 6m Trench Sheet 5m Trench Sheet 4m

90 150

60 R8 R8 R8 R8 R8 R8 R8 75,0
60,0 78 6 60,0 60,0 60

90
600
621,4
