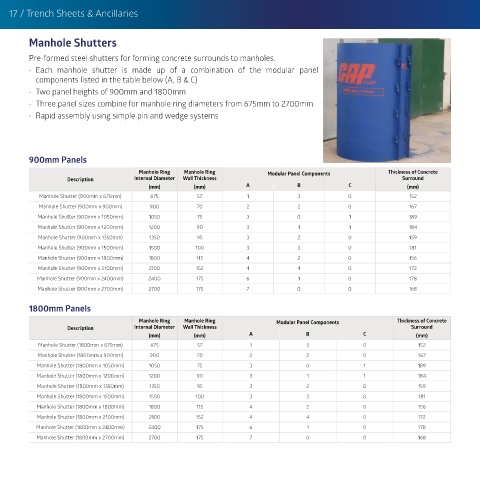

Page 18 - Trenching & Shoring E-Catalogue

17 / Trench Sheets & Ancillaries

Manhole Shutters

Pre-formed steel shutters for forming concrete surrounds to manholes.
• Each manhole shutter is made up of a combination of the modular panel
components listed in the table below (A, B & C)
• Two panel heights of 900mm and 1800mm
• Three panel sizes combine for manhole ring diameters from 675mm to 2700mm
• Rapid assembly using simple pin and wedge systems

900mm Panels
Manhole Ring Manhole Ring Modular Panel Components Thickness of Concrete
Description Internal Diameter Wall Thickness Surround
(mm) (mm) A B C (mm)
Manhole Shutter (900mm x 675mm) 675 57 1 3 0 152
Manhole Shutter (900mm x 900mm) 900 70 2 2 0 167
Manhole Shutter (900mm x 1050mm) 1050 75 3 0 1 189
Manhole Shutter (900mm x 1200mm) 1200 90 3 1 1 184
Manhole Shutter (900mm x 1350mm) 1350 95 3 2 0 159
Manhole Shutter (900mm x 1500mm) 1500 100 3 3 0 181
Manhole Shutter (900mm x 1800mm) 1800 115 4 2 0 156
Manhole Shutter (900mm x 2100mm) 2100 152 4 4 0 172
Manhole Shutter (900mm x 2400mm) 2400 175 6 1 0 178
Manhole Shutter (900mm x 2700mm) 2700 175 7 0 0 168

1800mm Panels
Manhole Ring Manhole Ring Modular Panel Components Thickness of Concrete
Description Internal Diameter Wall Thickness Surround
(mm) (mm) A B C (mm)
Manhole Shutter (1800mm x 675mm) 675 57 1 3 0 152
Manhole Shutter (1800mm x 900mm) 900 70 2 2 0 167
Manhole Shutter (1800mm x 1050mm) 1050 75 3 0 1 189
Manhole Shutter (1800mm x 1200mm) 1200 90 3 1 1 184
Manhole Shutter (1800mm x 1350mm) 1350 95 3 2 0 159
Manhole Shutter (1800mm x 1500mm) 1500 100 3 3 0 181
Manhole Shutter (1800mm x 1800mm) 1800 115 4 2 0 156
Manhole Shutter (1800mm x 2100mm) 2100 152 4 4 0 172
Manhole Shutter (1800mm x 2400mm) 2400 175 6 1 0 178
Manhole Shutter (1800mm x 2700mm) 2700 175 7 0 0 168
