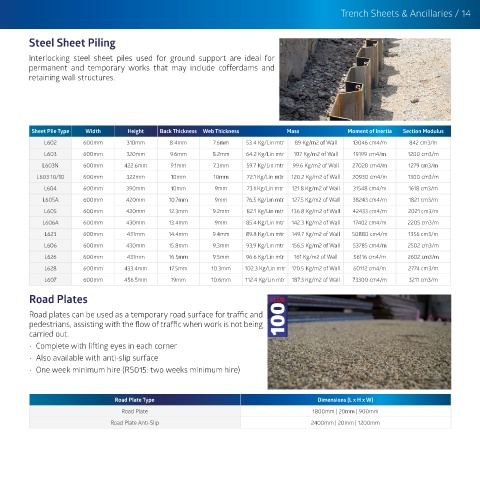

Trench Sheets & Ancillaries / 14

Steel Sheet Piling

Interlocking steel sheet piles used for ground support are ideal for
permanent and temporary works that may include cofferdams and
retaining wall structures.

Sheet Pile Type Width Height Back Thickness Web Thickness Mass Moment of Inertia Section Modulus
L602 600mm 310mm 8.4mm 7.6mm 53.4 Kg/Lin mtr 89 Kg/m2 of Wall 13046 cm4/m 842 cm3/m
L603 600mm 320mm 9.6mm 8.2mm 64.2 Kg/Lin mtr 107 Kg/m2 of Wall 19199 cm4/m 1200 cm3/m
L603N 600mm 422.6mm 9.1mm 7.3mm 59.7 Kg/Lin mtr 99.6 Kg/m2 of Wall 27020 cm4/m 1279 cm3/m
L603 10/10 600mm 322mm 10mm 10mm 72.1 Kg/Lin mtr 120.2 Kg/m2 of Wall 20930 cm4/m 1300 cm3/m
L604 600mm 390mm 10mm 9mm 73.1 Kg/Lin mtr 121.8 Kg/m2 of Wall 31548 cm4/m 1618 cm3/m
L605A 600mm 420mm 10.7mm 9mm 76.5 Kg/Lin mtr 127.5 Kg/m2 of Wall 38243 cm4/m 1821 cm3/m
L605 600mm 420mm 12.3mm 9.2mm 82.1 Kg/Lin mtr 136.8 Kg/m2 of Wall 42433 cm4/m 2021 cm3/m
L606A 600mm 430mm 13.4mm 9mm 85.4 Kg/Lin mtr 142.3 Kg/m2 of Wall 17402 cm4/m 2205 cm3/m
L623 600mm 431mm 14.4mm 9.4mm 89.8 Kg/Lin mtr 149.7 Kg/m2 of Wall 50880 cm4/m 1356 cm3/m
L606 600mm 430mm 15.8mm 9.3mm 93.9 Kg/Lin mtr 156.5 Kg/m2 of Wall 53785 cm4/m 2502 cm3/m
L626 600mm 431mm 16.5mm 9.5mm 96.6 Kg/Lin mtr 161 Kg/m2 of Wall 56116 cm4/m 2602 cm3/m
L628 600mm 433.4mm 17.5mm 10.3mm 102.3 Kg/Lin mtr 170.5 Kg/m2 of Wall 60112 cm4/m 2774 cm3/m
L607 600mm 456.5mm 19mm 10.6mm 112.4 Kg/Lin mtr 187.3 Kg/m2 of Wall 73300 cm4/m 3211 cm3/m
Road Plates

Road plates can be used as a temporary road surface for traffic and
pedestrians, assisting with the flow of traffic when work is not being
carried out.
• Complete with lifting eyes in each corner
• Also available with anti-slip surface
• One week minimum hire (RS015: two weeks minimum hire)

Road Plate Type Dimensions (L x H x W)
Road Plate 1800mm | 20mm | 900mm
Road Plate Anti-Slip 2400mm | 20mm | 1200mm
