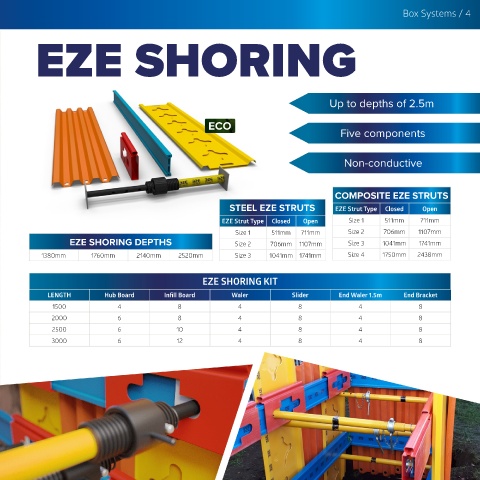

Page 5 - Trenching & Shoring E-Catalogue
P. 5
Box Systems / 4
EZE SHORING
Up to depths of 2.5m
ECO
Five components
Non-conductive
COMPOSITE EZE STRUTS
STEEL EZE STRUTS EZE Strut Type Closed Open
EZE Strut Type Closed Open Size 1 511mm 711mm
Size 1 511mm 711mm Size 2 706mm 1107mm
EZE SHORING DEPTHS Size 2 706mm 1107mm Size 3 1041mm 1741mm
1380mm 1760mm 2140mm 2520mm Size 3 1041mm 1741mm Size 4 1750mm 2438mm
EZE SHORING KIT
LENGTH Hub Board Infill Board Waler Slider End Waler 1.5m End Bracket
1500 4 8 4 8 4 8
2000 6 8 4 8 4 8
2500 6 10 4 8 4 8
3000 6 12 4 8 4 8
