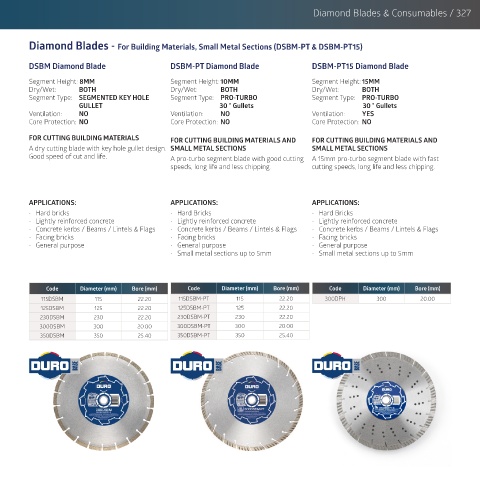

Diamond Blades & Consumables / 327

Diamond Blades - For Building Materials, Small Metal Sections (DSBM-PT & DSBM-PT15)

DSBM Diamond Blade DSBM-PT Diamond Blade DSBM-PT15 Diamond Blade

Segment Height: 8MM Segment Height: 10MM Segment Height: 15MM
Dry/Wet: BOTH Dry/Wet: BOTH Dry/Wet: BOTH
Segment Type: SEGMENTED KEY HOLE Segment Type: PRO-TURBO Segment Type: PRO-TURBO
GULLET 30 ˚ Gullets 30 ˚ Gullets
Ventilation: NO Ventilation: NO Ventilation: YES
Core Protection: NO Core Protection: NO Core Protection: NO

FOR CUTTING BUILDING MATERIALS FOR CUTTING BUILDING MATERIALS AND FOR CUTTING BUILDING MATERIALS AND
A dry cutting blade with key hole gullet design. SMALL METAL SECTIONS SMALL METAL SECTIONS
Good speed of cut and life. A pro-turbo segment blade with good cutting A 15mm pro-turbo segment blade with fast
speeds, long life and less chipping. cutting speeds, long life and less chipping.

APPLICATIONS: APPLICATIONS: APPLICATIONS:
• Hard bricks • Hard Bricks • Hard Bricks
• Lightly reinforced concrete • Lightly reinforced concrete • Lightly reinforced concrete
• Concrete kerbs / Beams / Lintels & Flags • Concrete kerbs / Beams / Lintels & Flags • Concrete kerbs / Beams / Lintels & Flags
• Facing bricks • Facing bricks • Facing bricks
• General purpose • General purpose • General purpose
• Small metal sections up to 5mm • Small metal sections up to 5mm

Code Diameter (mm) Bore (mm) Code Diameter (mm) Bore (mm) Code Diameter (mm) Bore (mm)
115DSBM 115 22.20 115DSBM-PT 115 22.20 300DPH 300 20.00
125DSBM 125 22.20 125DSBM-PT 125 22.20
230DSBM 230 22.20 230DSBM-PT 230 22.20
300DSBM 300 20.00 300DSBM-PT 300 20.00
350DSBM 350 25.40 350DSBM-PT 350 25.40
