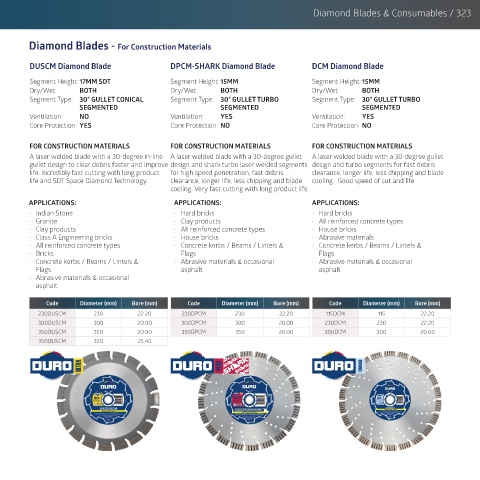

Diamond Blades & Consumables / 323

Diamond Blades - For Construction Materials

DUSCM Diamond Blade DPCM-SHARK Diamond Blade DCM Diamond Blade

Segment Height: 17MM SDT Segment Height: 15MM Segment Height: 15MM
Dry/Wet: BOTH Dry/Wet: BOTH Dry/Wet: BOTH
Segment Type: 30° GULLET CONICAL Segment Type: 30° GULLET TURBO Segment Type: 30° GULLET TURBO
SEGMENTED SEGMENTED SEGMENTED
Ventilation: NO Ventilation: YES Ventilation: YES
Core Protection: YES Core Protection: NO Core Protection: NO

FOR CONSTRUCTION MATERIALS FOR CONSTRUCTION MATERIALS FOR CONSTRUCTION MATERIALS
A laser welded blade with a 30-degree in-line A laser welded blade with a 30-degree gullet A laser welded blade with a 30-degree gullet
gullet design to clear debris faster and improve design and shark turbo laser welded segments design and turbo segments for fast debris
life. Incredibly fast cutting with long product for high speed penetration, fast debris clearance, longer life, less chipping and blade
life and SDT Space Diamond Technology. clearance, longer life, less chipping and blade cooling. Good speed of cut and life.
cooling. Very fast cutting with long product life.

APPLICATIONS: APPLICATIONS: APPLICATIONS:
• Indian Stone • Hard bricks • Hard bricks
• Granite • Clay products • All reinforced concrete types
• Clay products • All reinforced concrete types • House bricks
• Class A Engineering bricks • House bricks • Abrasive materials
• All reinforced concrete types • Concrete kerbs / Beams / Lintels & • Concrete kerbs / Beams / Lintels &
• Bricks Flags Flags
• Concrete kerbs / Beams / Lintels & • Abrasive materials & occasional • Abrasive materials & occasional
Flags asphalt asphalt
• Abrasive materials & occasional
asphalt
Code Diameter (mm) Bore (mm) Code Diameter (mm) Bore (mm) Code Diameter (mm) Bore (mm)
230DUSCM 230 22.20 230DPCM 230 22.20 115DCM 115 22.20
300DUSCM 300 20.00 300DPCM 300 20.00 230DCM 230 22.20
350DUSCM 350 20.00 350DPCM 350 20.00 300DCM 300 20.00
350DUSCM 350 25.40
