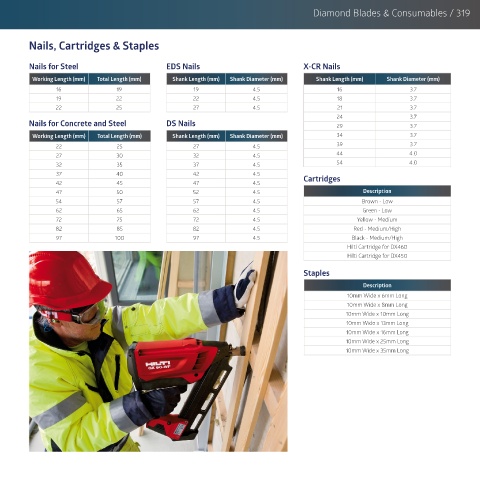

Diamond Blades & Consumables / 319
Nails, Cartridges & Staples
Nails for Steel EDS Nails X-CR Nails
Working Length (mm) Total Length (mm) Shank Length (mm) Shank Diameter (mm) Shank Length (mm) Shank Diameter (mm)
16 19 19 4.5 16 3.7
19 22 22 4.5 18 3.7
22 25 27 4.5 21 3.7
24 3.7
Nails for Concrete and Steel DS Nails 29 3.7
Working Length (mm) Total Length (mm) Shank Length (mm) Shank Diameter (mm) 34 3.7
22 25 27 4.5 39 3.7
27 30 32 4.5 44 4.0
32 35 37 4.5 54 4.0
37 40 42 4.5 Cartridges
42 45 47 4.5
47 50 52 4.5 Description
54 57 57 4.5 Brown - Low
62 65 62 4.5 Green - Low
72 75 72 4.5 Yellow - Medium
82 85 82 4.5 Red - Medium/High
97 100 97 4.5 Black - Medium/High
Hilti Cartridge for DX460
Hilti Cartridge for DX450
Staples
Description
10mm Wide x 6mm Long
10mm Wide x 8mm Long
10mm Wide x 10mm Long
10mm Wide x 13mm Long
10mm Wide x 16mm Long
10mm Wide x 25mm Long
10mm Wide x 35mm Long
