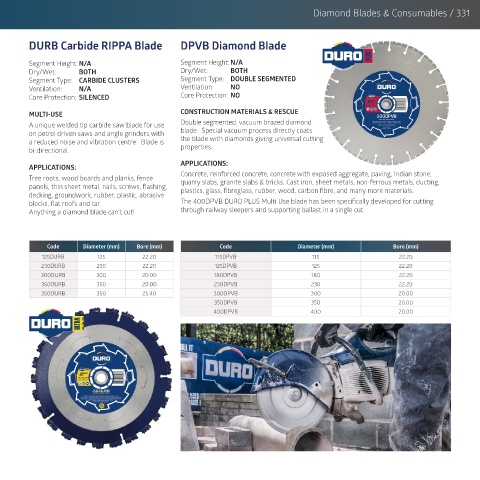

Page 333 - Full GAP Catalogue 2022

Diamond Blades & Consumables / 331

DURB Carbide RIPPA Blade DPVB Diamond Blade

Segment Height: N/A Segment Height: N/A
Dry/Wet: BOTH Dry/Wet: BOTH
Segment Type: CARBIDE CLUSTERS Segment Type: DOUBLE SEGMENTED
Ventilation: N/A Ventilation: NO
Core Protection: SILENCED Core Protection: NO

MULTI-USE CONSTRUCTION MATERIALS & RESCUE
A unique welded tip carbide saw blade for use Double segmented, vacuum brazed diamond
on petrol driven saws and angle grinders with blade. Special vacuum process directly coats
a reduced noise and vibration centre. Blade is the blade with diamonds giving universal cutting
bi-directional. properties.
APPLICATIONS:
APPLICATIONS:
Tree roots, wood boards and planks, fence Concrete, reinforced concrete, concrete with exposed aggregate, paving, Indian stone,
quarry slabs, granite slabs & bricks. Cast iron, sheet metals, non-ferrous metals, ducting,
panels, thin sheet metal, nails, screws, flashing, plastics, glass, fibreglass, rubber, wood, carbon fibre, and many more materials.
decking, groundwork, rubber, plastic, abrasive
blocks, flat roofs and tar. The 400DPVB DURO PLUS Multi Use blade has been specifically developed for cutting
Anything a diamond blade can’t cut! through railway sleepers and supporting ballast in a single cut.

Code Diameter (mm) Bore (mm) Code Diameter (mm) Bore (mm)
125DURB 125 22.20 115DPVB 115 22.20
230DURB 230 22.20 125DPVB 125 22.20
300DURB 300 20.00 180DPVB 180 22.20
350DURB 350 20.00 230DPVB 230 22.20
350DURB 350 25.40 300DPVB 300 20.00
350DPVB 350 20.00
400DPVB 400 20.00
