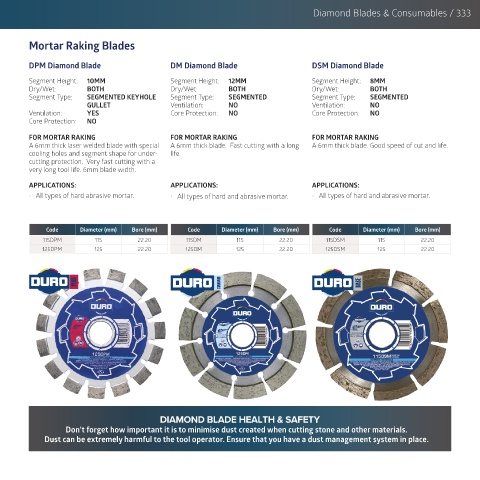

Diamond Blades & Consumables / 333

Mortar Raking Blades

DPM Diamond Blade DM Diamond Blade DSM Diamond Blade

Segment Height: 10MM Segment Height: 12MM Segment Height: 8MM
Dry/Wet: BOTH Dry/Wet: BOTH Dry/Wet: BOTH
Segment Type: SEGMENTED KEYHOLE Segment Type: SEGMENTED Segment Type: SEGMENTED
GULLET Ventilation: NO Ventilation: NO
Ventilation: YES Core Protection: NO Core Protection: NO
Core Protection: NO
FOR MORTAR RAKING FOR MORTAR RAKING FOR MORTAR RAKING
A 6mm thick laser welded blade with special A 6mm thick blade. Fast cutting with a long A 6mm thick blade. Good speed of cut and life.
cooling holes and segment shape for under- life.
cutting protection. Very fast cutting with a
very long tool life. 6mm blade width.
APPLICATIONS: APPLICATIONS: APPLICATIONS:
• All types of hard abrasive mortar. • All types of hard and abrasive mortar. • All types of hard and abrasive mortar.

Code Diameter (mm) Bore (mm) Code Diameter (mm) Bore (mm) Code Diameter (mm) Bore (mm)
115DPM 115 22.20 115DM 115 22.20 115DSM 115 22.20
125DPM 125 22.20 125DM 125 22.20 125DSM 125 22.20

DIAMOND BLADE HEALTH & SAFETY
Don’t forget how important it is to minimise dust created when cutting stone and other materials.
Dust can be extremely harmful to the tool operator. Ensure that you have a dust management system in place.
