Bowsers & Fuel Tanks / 78

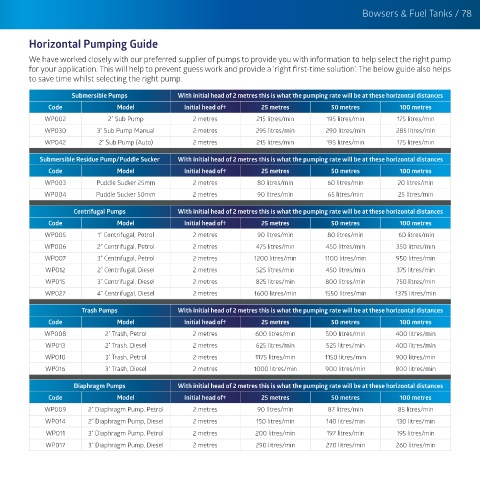

Horizontal Pumping Guide
We have worked closely with our preferred supplier of pumps to provide you with information to help select the right pump
for your application. This will help to prevent guess work and provide a ‘right first-time solution’. The below guide also helps
to save time whilst selecting the right pump.

Submersible Pumps With initial head of 2 metres this is what the pumping rate will be at these horizontal distances
Code Model Initial head of↑ 25 metres 50 metres 100 metres
WP002 2” Sub Pump 2 metres 215 litres/min 195 litres/min 175 litres/min
WP030 3” Sub Pump Manual 2 metres 295 litres/min 290 litres/min 285 litres/min
WP042 2” Sub Pump (Auto) 2 metres 215 litres/min 195 litres/min 175 litres/min

Submersible Residue Pump/Puddle Sucker With initial head of 2 metres this is what the pumping rate will be at these horizontal distances
Code Model Initial head of↑ 25 metres 50 metres 100 metres
WP003 Puddle Sucker 25mm 2 metres 80 litres/min 60 litres/min 20 litres/min
WP004 Puddle Sucker 50mm 2 metres 90 litres/min 65 litres/min 25 litres/min

Centrifugal Pumps With initial head of 2 metres this is what the pumping rate will be at these horizontal distances
Code Model Initial head of↑ 25 metres 50 metres 100 metres
WP005 1” Centrifugal, Petrol 2 metres 90 litres/min 80 litres/min 60 litres/min
WP006 2” Centrifugal, Petrol 2 metres 475 litres/min 450 litres/min 350 litres/min
WP007 3” Centrifugal, Petrol 2 metres 1200 litres/min 1100 litres/min 950 litres/min
WP012 2” Centrifugal, Diesel 2 metres 525 litres/min 450 litres/min 375 litres/min
WP015 3” Centrifugal, Diesel 2 metres 825 litres/min 800 litres/min 750 litres/min
WP027 4” Centrifugal, Diesel 2 metres 1600 litres/min 1550 litres/min 1375 litres/min
Trash Pumps With initial head of 2 metres this is what the pumping rate will be at these horizontal distances
Code Model Initial head of↑ 25 metres 50 metres 100 metres
WP008 2” Trash, Petrol 2 metres 600 litres/min 500 litres/min 400 litres/min
WP013 2” Trash, Diesel 2 metres 625 litres/min 525 litres/min 400 litres/min
WP010 3” Trash, Petrol 2 metres 1175 litres/min 1150 litres/min 900 litres/min
WP016 3” Trash, Diesel 2 metres 1000 litres/min 900 litres/min 800 litres/min

Diaphragm Pumps With initial head of 2 metres this is what the pumping rate will be at these horizontal distances
Code Model Initial head of↑ 25 metres 50 metres 100 metres
WP009 2” Diaphragm Pump, Petrol 2 metres 90 litres/min 87 litres/min 85 litres/min
WP014 2” Diaphragm Pump, Diesel 2 metres 150 litres/min 140 litres/min 130 litres/min
WP011 3” Diaphragm Pump, Petrol 2 metres 200 litres/min 197 litres/min 195 litres/min
WP017 3” Diaphragm Pump, Diesel 2 metres 290 litres/min 270 litres/min 260 litres/min
