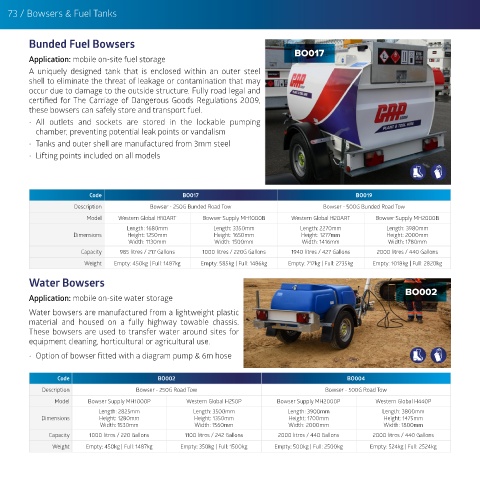

Page 74 - Tools E-Catalogue

73 / Bowsers & Fuel Tanks

Bunded Fuel Bowsers
Application: mobile on-site fuel storage BO017
A uniquely designed tank that is enclosed within an outer steel
shell to eliminate the threat of leakage or contamination that may
occur due to damage to the outside structure. Fully road legal and
certified for The Carriage of Dangerous Goods Regulations 2009,
these bowsers can safely store and transport fuel.
• All outlets and sockets are stored in the lockable pumping
chamber, preventing potential leak points or vandalism
• Tanks and outer shell are manufactured from 3mm steel
• Lifting points included on all models

Code BO017 BO019
Description Bowser - 250G Bunded Road Tow Bowser - 500G Bunded Road Tow
Model Western Global H10ART Bowser Supply MH1000B Western Global H20ART Bowser Supply MH2000B
Length: 1680mm Length: 3350mm Length: 2270mm Length: 3980mm
Dimensions Height: 1250mm Height: 1650mm Height: 1277mm Height: 2000mm
Width: 1130mm Width: 1500mm Width: 1416mm Width: 1780mm
Capacity 985 litres / 217 Gallons 1000 litres / 220G Gallons 1940 litres / 427 Gallons 2000 litres / 440 Gallons
Weight Empty: 450kg | Full: 1487kg Empty: 585kg | Full: 1486kg Empty: 717kg | Full: 2735kg Empty: 1018kg | Full: 2820kg

Water Bowsers
BO002
Application: mobile on-site water storage

Water bowsers are manufactured from a lightweight plastic
material and housed on a fully highway towable chassis.
These bowsers are used to transfer water around sites for
equipment cleaning, horticultural or agricultural use.
• Option of bowser fitted with a diagram pump & 6m hose

Code BO002 BO004
Description Bowser - 250G Road Tow Bowser - 500G Road Tow
Model Bowser Supply MH1000P Western Global H250P Bowser Supply MH2000P Western Global H440P
Length: 2825mm Length: 3500mm Length: 3900mm Length: 3800mm
Dimensions Height: 1280mm Height: 1350mm Height: 1700mm Height: 1475mm
Width: 1530mm Width: 1560mm Width: 2000mm Width: 1800mm
Capacity 1000 litres / 220 Gallons 1100 litres / 242 Gallons 2000 litres / 440 Gallons 2000 litres / 440 Gallons
Weight Empty: 450kg | Full: 1487kg Empty: 350kg | Full: 1500kg Empty: 500kg | Full: 2500kg Empty: 524kg | Full: 2524kg
