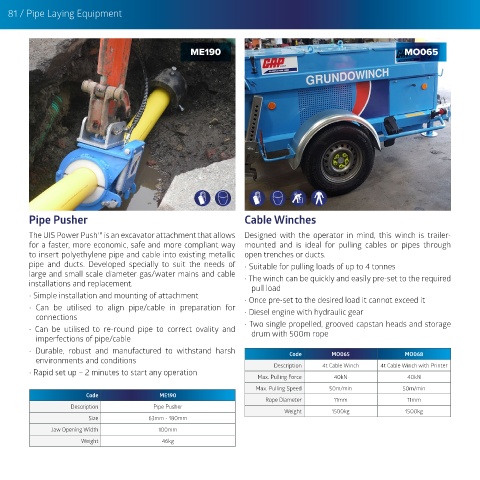

81 / Pipe Laying Equipment

ME190 MO065

Pipe Pusher Cable Winches

The UIS Power Push™ is an excavator attachment that allows Designed with the operator in mind, this winch is trailer-
for a faster, more economic, safe and more compliant way mounted and is ideal for pulling cables or pipes through
to insert polyethylene pipe and cable into existing metallic open trenches or ducts.
pipe and ducts. Developed specially to suit the needs of • Suitable for pulling loads of up to 4 tonnes
large and small scale diameter gas/water mains and cable • The winch can be quickly and easily pre-set to the required
installations and replacement. pull load
• Simple installation and mounting of attachment • Once pre-set to the desired load it cannot exceed it
• Can be utilised to align pipe/cable in preparation for • Diesel engine with hydraulic gear
connections
• Can be utilised to re-round pipe to correct ovality and • Two single propelled, grooved capstan heads and storage
drum with 500m rope
imperfections of pipe/cable
• Durable, robust and manufactured to withstand harsh Code MO065 MO068
environments and conditions Description 4t Cable Winch 4t Cable Winch with Printer
• Rapid set up – 2 minutes to start any operation
Max. Pulling Force 40kN 40kN
Max. Pulling Speed 50m/min 50m/min
Code ME190
Rope Diameter 11mm 11mm
Description Pipe Pusher
Weight 1500kg 1500kg
Size 63mm - 180mm
Jaw Opening Width 100mm
Weight 46kg
