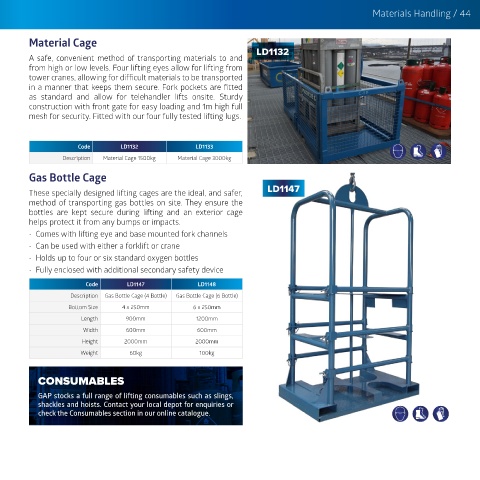

Page 45 - Lifting E-Catalogue
P. 45
Materials Handling / 44
Material Cage LD1132
A safe, convenient method of transporting materials to and
from high or low levels. Four lifting eyes allow for lifting from
tower cranes, allowing for difficult materials to be transported
in a manner that keeps them secure. Fork pockets are fitted
as standard and allow for telehandler lifts onsite. Sturdy
construction with front gate for easy loading and 1m high full
mesh for security. Fitted with our four fully tested lifting lugs.
Code LD1132 LD1133
Description Material Cage 1500kg Material Cage 3000kg
Gas Bottle Cage
These specially designed lifting cages are the ideal, and safer, LD1147
method of transporting gas bottles on site. They ensure the
bottles are kept secure during lifting and an exterior cage
helps protect it from any bumps or impacts.
• Comes with lifting eye and base mounted fork channels
• Can be used with either a forklift or crane
• Holds up to four or six standard oxygen bottles
• Fully enclosed with additional secondary safety device
Code LD1147 LD1148
Description Gas Bottle Cage (4 Bottle) Gas Bottle Cage (6 Bottle)
Bottom Size 4 x 250mm 6 x 250mm
Length 900mm 1200mm
Width 600mm 600mm
Height 2000mm 2000mm
Weight 60kg 100kg
CONSUMABLES
GAP stocks a full range of lifting consumables such as slings,
shackles and hoists. Contact your local depot for enquiries or
check the Consumables section in our online catalogue.
