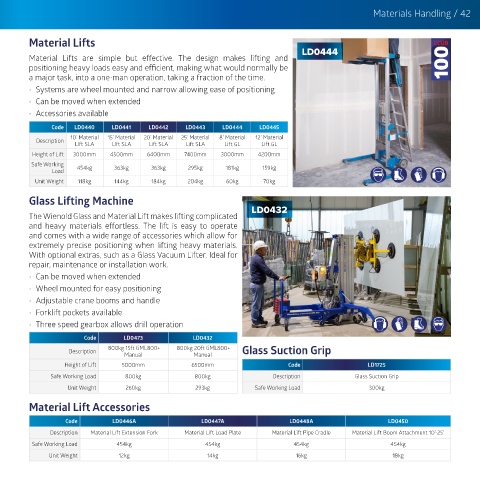

Page 43 - Lifting E-Catalogue

Materials Handling / 42

Material Lifts LD0444

Material Lifts are simple but effective. The design makes lifting and
positioning heavy loads easy and efficient, making what would normally be
a major task, into a one-man operation, taking a fraction of the time.
• Systems are wheel mounted and narrow allowing ease of positioning
• Can be moved when extended
• Accessories available
Code LD0440 LD0441 LD0442 LD0443 LD0444 LD0445
10’ Material 15’ Material 20’ Material 25’ Material 8’ Material 12’ Material
Description
Lift SLA Lift SLA Lift SLA Lift SLA Lift GL Lift GL
Height of Lift 3000mm 4500mm 6400mm 7400mm 3000mm 4200mm
Safe Working 454kg 363kg 363kg 295kg 181kg 159kg
Load
Unit Weight 118kg 144kg 184kg 204kg 60kg 70kg
Glass Lifting Machine LD0432

The Wienold Glass and Material Lift makes lifting complicated
and heavy materials effortless. The lift is easy to operate
and comes with a wide range of accessories which allow for
extremely precise positioning when lifting heavy materials.
With optional extras, such as a Glass Vacuum Lifter. Ideal for
repair, maintenance or installation work.
• Can be moved when extended
• Wheel mounted for easy positioning
• Adjustable crane booms and handle
• Forklift pockets available
• Three speed gearbox allows drill operation

Code LD0473 LD0432
800kg 15ft GML800+ 800kg 20ft GML800+ Glass Suction Grip
Description
Manual Manual
Height of Lift 5000mm 6500mm Code LD1725
Safe Working Load 800kg 800kg Description Glass Suction Grip
Unit Weight 260kg 293kg Safe Working Load 300kg
Material Lift Accessories

Code LD0446A LD0447A LD0448A LD0450
Description Material Lift Extension Fork Material Lift Load Plate Material Lift Pipe Cradle Material Lift Boom Attachment 10’-25’
Safe Working Load 454kg 454kg 454kg 454kg
Unit Weight 12kg 14kg 16kg 18kg
