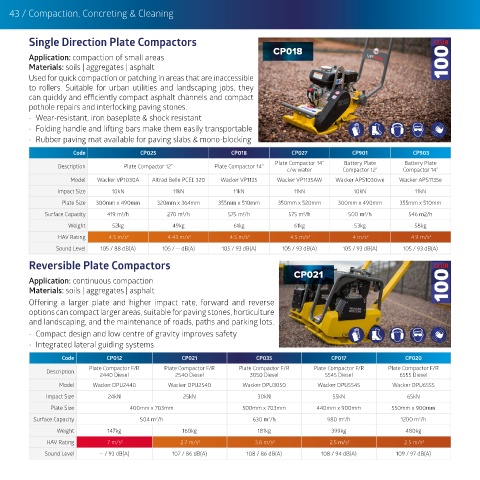

43 / Compaction, Concreting & Cleaning

Single Direction Plate Compactors

Application: compaction of small areas CP018
Materials: soils | aggregates | asphalt
Used for quick compaction or patching in areas that are inaccessible
to rollers. Suitable for urban utilities and landscaping jobs, they
can quickly and efficiently compact asphalt channels and compact
pothole repairs and interlocking paving stones.
• Wear-resistant, iron baseplate & shock resistant
• Folding handle and lifting bars make them easily transportable
• Rubber paving mat available for paving slabs & mono-blocking
Code CP025 CP018 CP027 CP901 CP903
Description Plate Compactor 12” Plate Compactor 14” Plate Compactor 14” Battery Plate Battery Plate
c/w water Compactor 12” Compactor 14”
Model Wacker VP1030A Altrad Belle PCEL 320 Wacker VP1135 Wacker VP1135AW Wacker APS1030we Wacker APS1135e
Impact Size 10kN 11kN 11kN 11kN 10kN 11kN
Plate Size 300mm x 490mm 320mm x 364mm 355mm x 510mm 350mm x 520mm 300mm x 490mm 355mm x 510mm
Surface Capacity 419 m²/h 270 m²/h 575 m²/h 575 m²/h 500 m²/h 546 m2/h
Weight 52kg 49kg 61kg 61kg 53kg 58kg
HAV Rating 4.5 m/s² 4.43 m/s² 4.5 m/s² 4.5 m/s² 4 m/s² 4.9 m/s²
Sound Level 105 / 88 dB(A) 105 / -- dB(A) 105 / 93 dB(A) 105 / 93 dB(A) 105 / 93 dB(A) 105 / 93 dB(A)
Reversible Plate Compactors CP021

Application: continuous compaction
Materials: soils | aggregates | asphalt
Offering a larger plate and higher impact rate, forward and reverse
options can compact larger areas, suitable for paving stones, horticulture
and landscaping, and the maintenance of roads, paths and parking lots.
• Compact design and low centre of gravity improves safety
• Integrated lateral guiding systems

Code CP012 CP021 CP035 CP017 CP020
Plate Compactor F/R Plate Compactor F/R Plate Compactor F/R Plate Compactor F/R Plate Compactor F/R
Description
2440 Diesel 2540 Diesel 3050 Diesel 5545 Diesel 6555 Diesel
Model Wacker DPU2440 Wacker DPU2540 Wacker DPU3050 Wacker DPU5545 Wacker DPU6555
Impact Size 24kN 25kN 30kN 55kN 65kN
Plate Size 400mm x 703mm 500mm x 703mm 440mm x 900mm 550mm x 900mm
Surface Capacity 504 m²/h 630 m²/h 980 m²/h 1200 m²/h
Weight 147kg 160kg 181kg 399kg 480kg
HAV Rating 7 m/s² 2.7 m/s² 3.6 m/s² 2.5 m/s² 2.5 m/s²
Sound Level -- / 93 dB(A) 107 / 86 dB(A) 108 / 86 dB(A) 108 / 94 dB(A) 109 / 97 dB(A)
