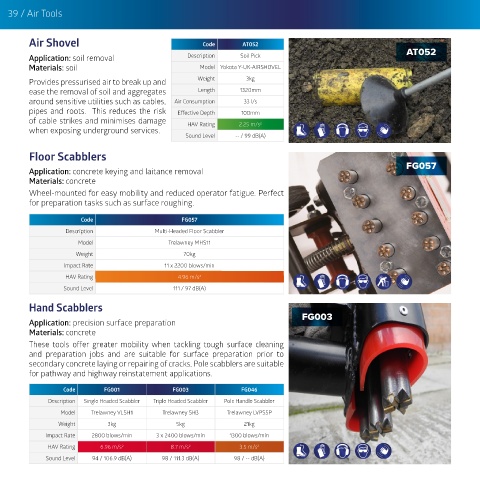

39 / Air Tools

Air Shovel Code AT052 AT052

Application: soil removal Description Soil Pick
Materials: soil Model Yokota Y-UK-AIRSHOVEL
Provides pressurised air to break up and Weight 3kg
ease the removal of soil and aggregates Length 1320mm
around sensitive utilities such as cables, Air Consumption 33 l/s
pipes and roots. This reduces the risk Effective Depth 100mm
of cable strikes and minimises damage HAV Rating 2.25 m/s²
when exposing underground services.
Sound Level -- / 99 dB(A)

Floor Scabblers

Application: concrete keying and laitance removal FG057
Materials: concrete
Wheel-mounted for easy mobility and reduced operator fatigue. Perfect
for preparation tasks such as surface roughing.

Code FG057
Description Multi-Headed Floor Scabbler
Model Trelawney MHS11
Weight 70kg
Impact Rate 11 x 2200 blows/min
HAV Rating 4.96 m/s²
Sound Level 111 / 97 dB(A)
Hand Scabblers

Application: precision surface preparation FG003
Materials: concrete
These tools offer greater mobility when tackling tough surface cleaning
and preparation jobs and are suitable for surface preparation prior to
secondary concrete laying or repairing of cracks. Pole scabblers are suitable
for pathway and highway reinstatement applications.

Code FG001 FG003 FG046
Description Single Headed Scabbler Triple Headed Scabbler Pole Handle Scabbler
Model Trelawney VLSH1 Trelawney SH3 Trelawney LVPS5P
Weight 3kg 5kg 21kg
Impact Rate 2800 blows/min 3 x 2400 blows/min 1300 blows/min
HAV Rating 6.96 m/s² 8.7 m/s² 3.5 m/s²
Sound Level 94 / 106.9 dB(A) 98 / 111.3 dB(A) 98 / -- dB(A)
