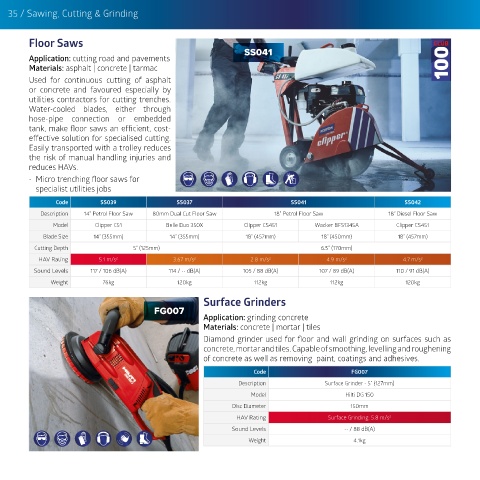

Page 38 - GAP Green Action Plan

35 / Sawing, Cutting & Grinding

Floor Saws

Application: cutting road and pavements SS041
Materials: asphalt | concrete | tarmac
Used for continuous cutting of asphalt
or concrete and favoured especially by
utilities contractors for cutting trenches.
Water-cooled blades, either through
hose-pipe connection or embedded
tank, make floor saws an efficient, cost-
effective solution for specialised cutting.
Easily transported with a trolley reduces
the risk of manual handling injuries and
reduces HAVs.
• Micro trenching floor saws for
specialist utilities jobs

Code SS039 SS037 SS041 SS042
Description 14” Petrol Floor Saw 80mm Dual Cut Floor Saw 18” Petrol Floor Saw 18” Diesel Floor Saw
Model Clipper C51 Belle Duo 350X Clipper CS451 Wacker BFS1345A Clipper CS451
Blade Size 14” (355mm) 14” (355mm) 18” (457mm) 18” (450mm) 18” (457mm)
Cutting Depth 5” (125mm) 6.5” (170mm)
HAV Rating 5.1 m/s² 3.67 m/s² 2.8 m/s² 4.9 m/s² 4.7 m/s²
Sound Levels 117 / 106 dB(A) 114 / -- dB(A) 105 / 88 dB(A) 107 / 89 dB(A) 110 / 91 dB(A)
Weight 76kg 120kg 112kg 112kg 120kg

Surface Grinders
FG007
Application: grinding concrete
Materials: concrete | mortar | tiles
Diamond grinder used for floor and wall grinding on surfaces such as
concrete, mortar and tiles. Capable of smoothing, levelling and roughening
of concrete as well as removing paint, coatings and adhesives.
Code FG007
Description Surface Grinder - 5” (127mm)
Model Hilti DG 150
Disc Diameter 150mm
HAV Rating Surface Grinding: 5.8 m/s²
Sound Levels -- / 88 dB(A)
Weight 4.1kg
