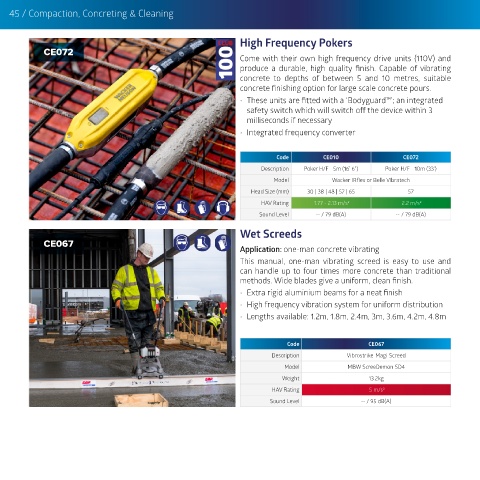

Page 48 - GAP Green Action Plan

45 / Compaction, Concreting & Cleaning

High Frequency Pokers
CE072
Come with their own high frequency drive units (110V) and
produce a durable, high quality finish. Capable of vibrating
concrete to depths of between 5 and 10 metres, suitable
concrete finishing option for large scale concrete pours.
• These units are fitted with a ‘Bodyguard™’; an integrated
safety switch which will switch off the device within 3
milliseconds if necessary
• Integrated frequency converter

Code CE010 CE072
Description Poker H/F - 5m (16’ 6”) Poker H/F - 10m (33’)
Model Wacker IRflex or Belle Vibratech
Head Size (mm) 30 | 38 | 48 | 57 | 65 57
HAV Rating 1.77 - 2.13 m/s² 2.2 m/s²
Sound Level -- / 79 dB(A) -- / 79 dB(A)
Wet Screeds
CE067
Application: one-man concrete vibrating
This manual, one-man vibrating screed is easy to use and
can handle up to four times more concrete than traditional
methods. Wide blades give a uniform, clean finish.
• Extra rigid aluminium beams for a neat finish
• High frequency vibration system for uniform distribution
• Lengths available: 1.2m, 1.8m, 2.4m, 3m, 3.6m, 4.2m, 4.8m

Code CE067
Description Vibrostrike-Magi-Screed
Model MBW ScreeDemon SD4
Weight 13.2kg
HAV Rating 5 m/s²
Sound Level -- / 95 dB(A)
