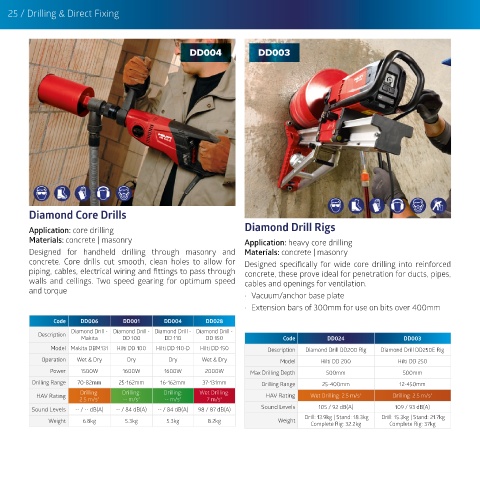

25 / Drilling & Direct Fixing

DD004 DD003

Diamond Core Drills

Application: core drilling Diamond Drill Rigs
Materials: concrete | masonry Application: heavy core drilling
Designed for handheld drilling through masonry and Materials: concrete | masonry
concrete. Core drills cut smooth, clean holes to allow for Designed specifically for wide core drilling into reinforced
piping, cables, electrical wiring and fittings to pass through concrete, these prove ideal for penetration for ducts, pipes,
walls and ceilings. Two speed gearing for optimum speed cables and openings for ventilation.
and torque
• Vacuum/anchor base plate
• Extension bars of 300mm for use on bits over 400mm
Code DD006 DD001 DD004 DD028
Diamond Drill - Diamond Drill - Diamond Drill - Diamond Drill -
Description
Makita DD 100 DD 110 DD 150 Code DD024 DD003
Model Makita DBM131 Hilti DD 100 Hilti DD 110-D Hilti DD 150 Description Diamond Drill DD200 Rig Diamond Drill DD250E Rig
Operation Wet & Dry Dry Dry Wet & Dry Model Hilti DD 200 Hilti DD 250
Power 1500W 1600W 1600W 2000W Max Drilling Depth 500mm 500mm
Drilling Range 70-82mm 25-162mm 16-162mm 37-131mm Drilling Range 25-400mm 12-450mm
Drilling: Drilling: Drilling: Wet Drilling:
HAV Rating HAV Rating Wet Drilling: 2.5 m/s² Drilling: 2.5 m/s²
2.5 m/s² -- m/s² -- m/s² 7 m/s²
Sound Levels -- / -- dB(A) -- / 84 dB(A) -- / 84 dB(A) 98 / 87 dB(A) Sound Levels 105 / 92 dB(A) 109 / 93 dB(A)
Weight 6.8kg 5.3kg 5.3kg 8.2kg Weight Drill: 13.9kg | Stand: 18.3kg Drill: 15.3kg | Stand: 21.7kg
Complete Rig: 32.2kg Complete Rig: 37kg
