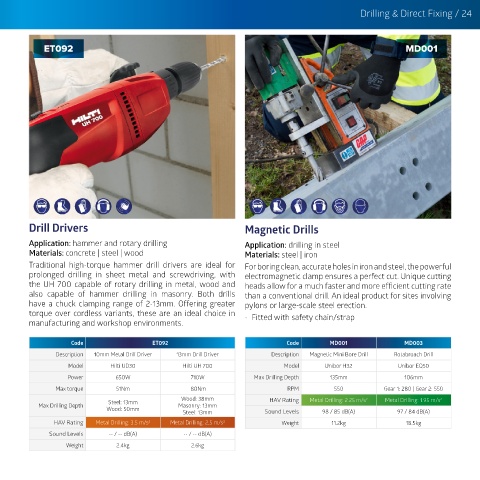

Page 29 - GAP Green Action Plan

Drilling & Direct Fixing / 24

ET092 MD001

Drill Drivers Magnetic Drills

Application: hammer and rotary drilling Application: drilling in steel
Materials: concrete | steel | wood Materials: steel | iron
Traditional high-torque hammer drill drivers are ideal for For boring clean, accurate holes in iron and steel, the powerful
prolonged drilling in sheet metal and screwdriving, with electromagnetic clamp ensures a perfect cut. Unique cutting
the UH 700 capable of rotary drilling in metal, wood and heads allow for a much faster and more efficient cutting rate
also capable of hammer drilling in masonry. Both drills than a conventional drill. An ideal product for sites involving
have a chuck clamping range of 2-13mm. Offering greater pylons or large-scale steel erection.
torque over cordless variants, these are an ideal choice in • Fitted with safety chain/strap
manufacturing and workshop environments.

Code ET092 Code MD001 MD003
Description 10mm Metal Drill Driver 13mm Drill Driver Description Magnetic Mini Bore Drill Rotabroach Drill
Model Hilti UD30 Hilti UH 700 Model Unibor H32 Unibor EQ50
Power 650W 710W Max Drilling Depth 135mm 106mm
Max torque 51Nm 80Nm RPM 550 Gear 1: 280 | Gear 2: 550
Wood: 38mm HAV Rating Metal Drilling: 2.25 m/s² Metal Drilling: 1.95 m/s²
Steel: 13mm
Max Drilling Depth Masonry: 13mm
Wood: 50mm
Steel: 13mm Sound Levels 98 / 85 dB(A) 97 / 84 dB(A)
HAV Rating Metal Drilling: 3.5 m/s² Metal Drilling: 2.5 m/s² Weight 11.2kg 18.5kg
Sound Levels -- / -- dB(A) -- / -- dB(A)
Weight 2.4kg 2.6kg
