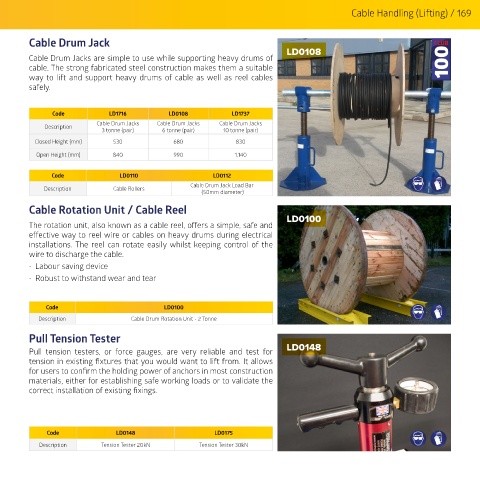

Page 171 - Full GAP Catalogue 2020 (digital)

Cable Handling (Lifting) / 169

Cable Drum Jack LD0108

Cable Drum Jacks are simple to use while supporting heavy drums of
cable. The strong fabricated steel construction makes them a suitable
way to lift and support heavy drums of cable as well as reel cables
safely.

Code LD1716 LD0108 LD1737
Cable Drum Jacks Cable Drum Jacks Cable Drum Jacks
Description 3 tonne (pair) 6 tonne (pair) 10 tonne (pair)
Closed Height (mm) 530 680 830
Open Height (mm) 840 990 1,140

Code LD0110 LD0112
Cable Drum Jack Load Bar
Description Cable Rollers
(50mm diameter)
Cable Rotation Unit / Cable Reel LD0100

The rotation unit, also known as a cable reel, offers a simple, safe and
effective way to reel wire or cables on heavy drums during electrical
installations. The reel can rotate easily whilst keeping control of the
wire to discharge the cable.
• Labour saving device
• Robust to withstand wear and tear

Code LD0100
Description Cable Drum Rotation Unit - 2 Tonne
Pull Tension Tester

Pull tension testers, or force gauges, are very reliable and test for LD0148
tension in existing fixtures that you would want to lift from. It allows
for users to confirm the holding power of anchors in most construction
materials, either for establishing safe working loads or to validate the
correct installation of existing fixings.

Code LD0148 LD0175
Description Tension Tester 20kN Tension Tester 30kN
