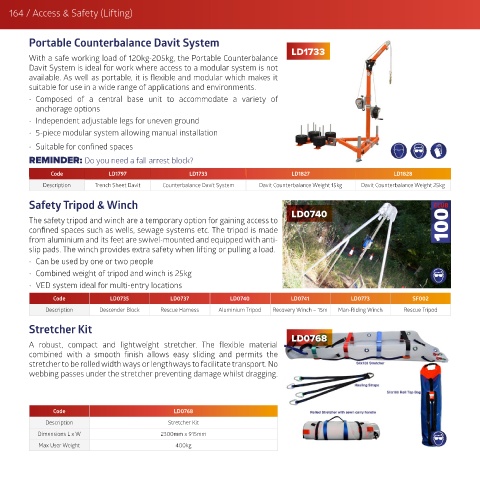

164 / Access & Safety (Lifting)

Portable Counterbalance Davit System LD1733

With a safe working load of 120kg-205kg, the Portable Counterbalance
Davit System is ideal for work where access to a modular system is not
available. As well as portable, it is flexible and modular which makes it
suitable for use in a wide range of applications and environments.
• Composed of a central base unit to accommodate a variety of
anchorage options
• Independent adjustable legs for uneven ground
• 5-piece modular system allowing manual installation
• Suitable for confined spaces
REMINDER: Do you need a fall arrest block?
Code LD1797 LD1733 LD1827 LD1828
Description Trench Sheet Davit Counterbalance Davit System Davit Counterbalance Weight 15kg Davit Counterbalance Weight 25kg
Safety Tripod & Winch LD0740

The safety tripod and winch are a temporary option for gaining access to
confined spaces such as wells, sewage systems etc. The tripod is made
from aluminium and its feet are swivel-mounted and equipped with anti-
slip pads. The winch provides extra safety when lifting or pulling a load.
• Can be used by one or two people
• Combined weight of tripod and winch is 25kg
• VED system ideal for multi-entry locations

Code LD0735 LD0737 LD0740 LD0741 LD0773 SF002
Description Descender Block Rescue Harness Aluminium Tripod Recovery Winch – 15m Man-Riding Winch Rescue Tripod

Stretcher Kit
A robust, compact and lightweight stretcher. The flexible material LD0768
combined with a smooth finish allows easy sliding and permits the
stretcher to be rolled width ways or lengthways to facilitate transport. No
webbing passes under the stretcher preventing damage whilst dragging.

Code LD0768
Description Stretcher Kit
Dimensions L x W 2300mm x 915mm
Max User Weight 400kg
