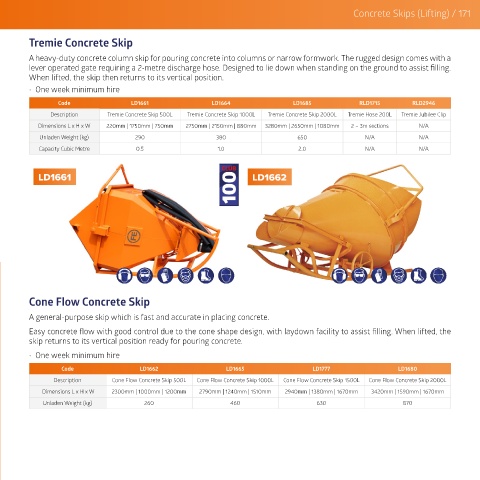

Page 173 - Full GAP Catalogue 2020 (digital)

Concrete Skips (Lifting) / 171

Tremie Concrete Skip

A heavy-duty concrete column skip for pouring concrete into columns or narrow formwork. The rugged design comes with a
lever operated gate requiring a 2-metre discharge hose. Designed to lie down when standing on the ground to assist filling.
When lifted, the skip then returns to its vertical position.
• One week minimum hire
Code LD1661 LD1664 LD1685 RLD1715 RLD2946
Description Tremie Concrete Skip 500L Tremie Concrete Skip 1000L Tremie Concrete Skip 2000L Tremie Hose 200L Tremie Jubilee Clip
Dimensions L x H x W 220mm | 1750mm | 750mm 2750mm | 2150mm | 880mm 3280mm | 2650mm | 1080mm 2 – 3m sections N/A
Unladen Weight (kg) 290 380 650 N/A N/A
Capacity Cubic Metre 0.5 1.0 2.0 N/A N/A

LD1661 LD1662

Cone Flow Concrete Skip
A general-purpose skip which is fast and accurate in placing concrete.
Easy concrete flow with good control due to the cone shape design, with laydown facility to assist filling. When lifted, the
skip returns to its vertical position ready for pouring concrete.
• One week minimum hire
Code LD1662 LD1665 LD1777 LD1680
Description Cone Flow Concrete Skip 500L Cone Flow Concrete Skip 1000L Cone Flow Concrete Skip 1500L Cone Flow Concrete Skip 2000L
Dimensions L x H x W 2300mm | 1000mm | 1200mm 2790mm | 1240mm | 1510mm 2940mm | 1380mm | 1670mm 3420mm | 1590mm | 1670mm
Unladen Weight (kg) 260 460 630 870
