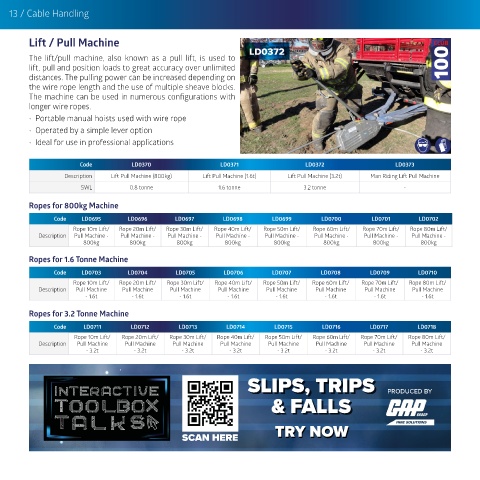

13 / Cable Handling

Lift / Pull Machine

The lift/pull machine, also known as a pull lift, is used to LD0372
lift, pull and position loads to great accuracy over unlimited
distances. The pulling power can be increased depending on
the wire rope length and the use of multiple sheave blocks.
The machine can be used in numerous configurations with
longer wire ropes.
• Portable manual hoists used with wire rope
• Operated by a simple lever option
• Ideal for use in professional applications

Code LD0370 LD0371 LD0372 LD0373
Description Lift Pull Machine (800kg) Lift Pull Machine (1.6t) Lift Pull Machine (3.2t) Man Riding Lift Pull Machine
SWL 0.8 tonne 1.6 tonne 3.2 tonne -

Ropes for 800kg Machine
Code LD0695 LD0696 LD0697 LD0698 LD0699 LD0700 LD0701 LD0702
Rope 10m Lift/ Rope 20m Lift/ Rope 30m Lift/ Rope 40m Lift/ Rope 50m Lift/ Rope 60m Lift/ Rope 70m Lift/ Rope 80m Lift/
Description Pull Machine - Pull Machine - Pull Machine - Pull Machine - Pull Machine - Pull Machine - Pull Machine - Pull Machine -
800kg 800kg 800kg 800kg 800kg 800kg 800kg 800kg
Ropes for 1.6 Tonne Machine

Code LD0703 LD0704 LD0705 LD0706 LD0707 LD0708 LD0709 LD0710
Rope 10m Lift/ Rope 20m Lift/ Rope 30m Lift/ Rope 40m Lift/ Rope 50m Lift/ Rope 60m Lift/ Rope 70m Lift/ Rope 80m Lift/
Description Pull Machine Pull Machine Pull Machine Pull Machine Pull Machine Pull Machine Pull Machine Pull Machine
- 1.6t - 1.6t - 1.6t - 1.6t - 1.6t - 1.6t - 1.6t - 1.6t

Ropes for 3.2 Tonne Machine
Code LD0711 LD0712 LD0713 LD0714 LD0715 LD0716 LD0717 LD0718
Rope 10m Lift/ Rope 20m Lift/ Rope 30m Lift/ Rope 40m Lift/ Rope 50m Lift/ Rope 60m Lift/ Rope 70m Lift/ Rope 80m Lift/
Description Pull Machine Pull Machine Pull Machine Pull Machine Pull Machine Pull Machine Pull Machine Pull Machine
- 3.2t - 3.2t - 3.2t - 3.2t - 3.2t - 3.2t - 3.2t - 3.2t
