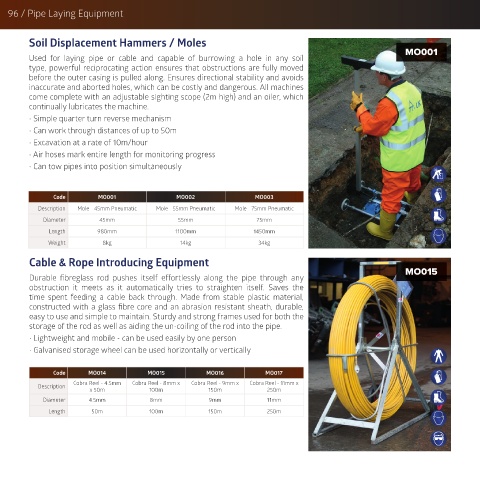

96 / Pipe Laying Equipment

Soil Displacement Hammers / Moles MO001

Used for laying pipe or cable and capable of burrowing a hole in any soil
type, powerful reciprocating action ensures that obstructions are fully moved LI047
before the outer casing is pulled along. Ensures directional stability and avoids
inaccurate and aborted holes, which can be costly and dangerous. All machines
come complete with an adjustable sighting scope (2m high) and an oiler, which
continually lubricates the machine.
• Simple quarter turn reverse mechanism
• Can work through distances of up to 50m
• Excavation at a rate of 10m/hour
• Air hoses mark entire length for monitoring progress
• Can tow pipes into position simultaneously

Code MO001 MO002 MO003
Description Mole - 45mm Pneumatic Mole - 55mm Pneumatic Mole - 75mm Pneumatic
Diameter 45mm 55mm 75mm
Length 980mm 1100mm 1450mm
Weight 8kg 14kg 34kg
Cable & Rope Introducing Equipment

Durable fibreglass rod pushes itself effortlessly along the pipe through any MO015
obstruction it meets as it automatically tries to straighten itself. Saves the
time spent feeding a cable back through. Made from stable plastic material,
constructed with a glass fibre core and an abrasion resistant sheath, durable,
easy to use and simple to maintain. Sturdy and strong frames used for both the
storage of the rod as well as aiding the un-coiling of the rod into the pipe.
• Lightweight and mobile - can be used easily by one person
• Galvanised storage wheel can be used horizontally or vertically

Code MO014 MO015 MO016 MO017
Cobra Reel - 4.5mm Cobra Reel - 8mm x Cobra Reel - 9mm x Cobra Reel - 11mm x
Description
x 50m 100m 150m 250m
Diameter 4.5mm 8mm 9mm 11mm
Length 50m 100m 150m 250m
