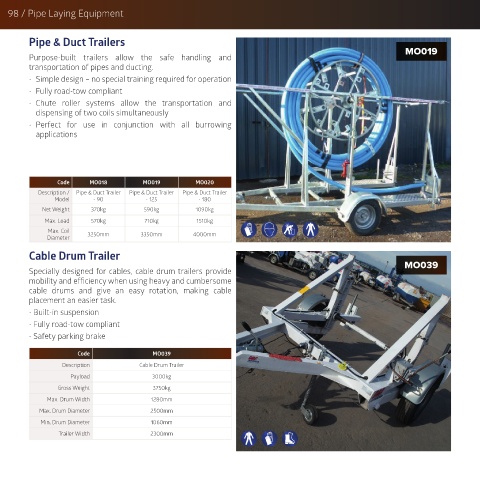

98 / Pipe Laying Equipment

Pipe & Duct Trailers

Purpose-built trailers allow the safe handling and MO019
transportation of pipes and ducting.
• Simple design – no special training required for operation
• Fully road-tow compliant
• Chute roller systems allow the transportation and
dispensing of two coils simultaneously
• Perfect for use in conjunction with all burrowing
applications

Code MO018 MO019 MO020
Description / Pipe & Duct Trailer Pipe & Duct Trailer Pipe & Duct Trailer
Model - 90 - 125 - 180
Net Weight 370kg 590kg 1090kg
Max. Load 570kg 710kg 1510kg
Max. Coil
Diameter 3250mm 3350mm 4000mm
Cable Drum Trailer

Specially designed for cables, cable drum trailers provide MO039
mobility and efficiency when using heavy and cumbersome
cable drums and give an easy rotation, making cable
placement an easier task.
• Built-in suspension
• Fully road-tow compliant
• Safety parking brake

Code MO039
Description Cable Drum Trailer
Payload 3000kg
Gross Weight 3750kg
Max. Drum Width 1280mm
Max. Drum Diameter 2500mm
Min. Drum Diameter 1060mm
Trailer Width 2300mm
