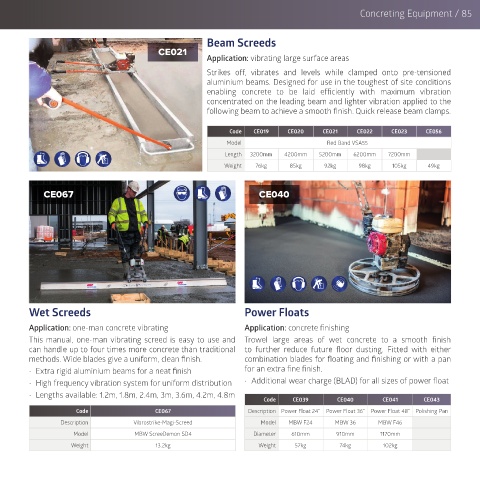

Page 87 - Full GAP Catalogue 2022

Concreting Equipment / 85

Beam Screeds
CE021
Application: vibrating large surface areas
Strikes off, vibrates and levels while clamped onto pre-tensioned
aluminium beams. Designed for use in the toughest of site conditions
enabling concrete to be laid efficiently with maximum vibration
concentrated on the leading beam and lighter vibration applied to the
following beam to achieve a smooth finish. Quick release beam clamps.

Code CE019 CE020 CE021 CE022 CE023 CE056
Model Red Band VSA55
Length 3200mm 4200mm 5200mm 6200mm 7200mm
Weight 76kg 85kg 92kg 98kg 105kg 49kg

CE067 CE040

Wet Screeds Power Floats

Application: one-man concrete vibrating Application: concrete finishing
This manual, one-man vibrating screed is easy to use and Trowel large areas of wet concrete to a smooth finish
can handle up to four times more concrete than traditional to further reduce future floor dusting. Fitted with either
methods. Wide blades give a uniform, clean finish. combination blades for floating and finishing or with a pan
• Extra rigid aluminium beams for a neat finish for an extra fine finish.
• High frequency vibration system for uniform distribution • Additional wear charge (BLAD) for all sizes of power float
• Lengths available: 1.2m, 1.8m, 2.4m, 3m, 3.6m, 4.2m, 4.8m
Code CE039 CE040 CE041 CE043
Code CE067 Description Power Float 24” Power Float 36” Power Float 48” Polishing Pan
Description Vibrostrike-Magi-Screed Model MBW F24 MBW 36 MBW F46
Model MBW ScreeDemon SD4 Diameter 610mm 910mm 1170mm
Weight 13.2kg Weight 57kg 74kg 102kg
