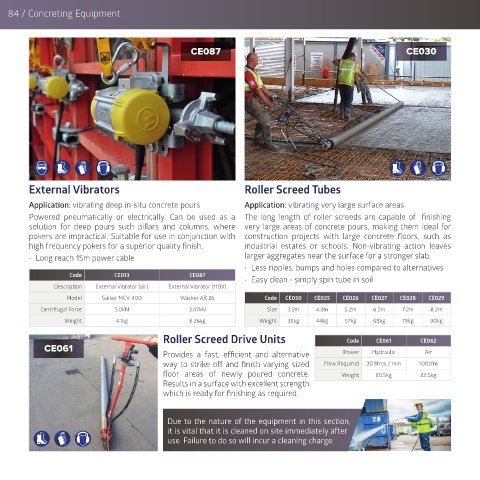

84 / Concreting Equipment

CE087 CE030

External Vibrators Roller Screed Tubes

Application: vibrating deep in-situ concrete pours Application: vibrating very large surface areas
Powered pneumatically or electrically. Can be used as a The long length of roller screeds are capable of finishing
solution for deep pours such pillars and columns, where very large areas of concrete pours, making them ideal for
pokers are impractical. Suitable for use in conjunction with construction projects with large concrete floors, such as
high frequency pokers for a superior quality finish. industrial estates or schools. Non-vibrating action leaves
• Long reach 15m power cable larger aggregates near the surface for a stronger slab.
• Less ripples, bumps and holes compared to alternatives
Code CE013 CE087
• Easy clean - simply spin tube in soil
Description External Vibrator (air) External Vibrator (110V)
Model Sullair MCV-400 Wacker AR 26 Code CE030 CE025 CE026 CE027 CE028 CE029
Centrifugal Force 3.0kN 3.47kN Size 3.2m 4.2m 5.2m 6.2m 7.2m 8.2m
Weight 4.1kg 6.26kg Weight 35kg 44kg 57kg 68kg 79kg 90kg
Roller Screed Drive Units Code CE061 CE062
CE061
Provides a fast, efficient and alternative Power Hydraulic Air
way to strike off and finish varying sized Flow Required 30 litres / min 100cfm
floor areas of newly poured concrete. Weight 20.5kg 22.5kg
Results in a surface with excellent strength
which is ready for finishing as required.

Due to the nature of the equipment in this section,
it is vital that it is cleaned on site immediately after
use. Failure to do so will incur a cleaning charge.
