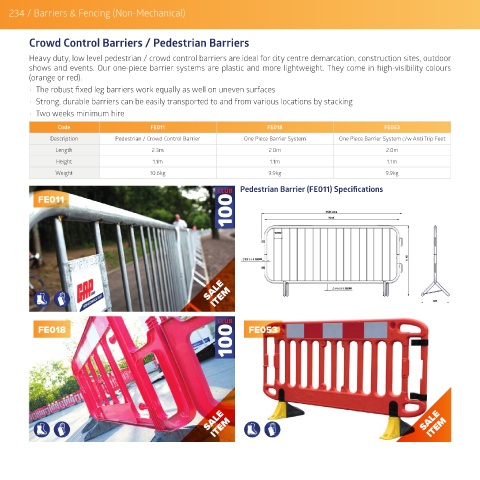

234 / Barriers & Fencing (Non-Mechanical)

Crowd Control Barriers / Pedestrian Barriers

Heavy duty, low level pedestrian / crowd control barriers are ideal for city centre demarcation, construction sites, outdoor
shows and events. Our one-piece barrier systems are plastic and more lightweight. They come in high-visibility colours
(orange or red).
• The robust fixed leg barriers work equally as well on uneven surfaces
• Strong, durable barriers can be easily transported to and from various locations by stacking
• Two weeks minimum hire
Code FE011 FE018 FE053
Description Pedestrian / Crowd Control Barrier One Piece Barrier System One Piece Barrier System c/w Anti Trip Feet
Length 2.3m 2.0m 2.0m
Height 1.1m 1.1m 1.1m
Weight 10.6kg 9.9kg 9.9kg
       1076 
ALL DIMENSIONS IN MILLIMETRES THIRD ANGLE PROJECTION
REMOVE ALL SHARP EDGES DO NOT SCALE DRAWING
Pedestrian Barrier (FE011) Specifications
 
FE011
!
 

 

+ &

SALE +
& 
 
ITEM
 

FE018 FE053
TOLERANCES - UNLESS STATED OTHERWISE
UNTOLERANCED DIMENSIONS +/- 2mm TITLE:
CUTTING LENGTHS +/- 2mm
UP TO 300mm +/- 1mm MATERIAL:
FABRICATION UP TO 1000mm +/- 2mm NAME SIGNATURE DATE
  1001mm & ABOVE +/- 3mm DRAWN G. CRICK 20/12/11
ANGULAR +/- 1 CHK'D .
MACHINING +/- 0.2mm FINISH: CARBON STEEL Drw / Stockcode No. Revision
GAUGE +/- 10% PRE-GALVANISED
+/- 10% (DUE TO MATERIAL NONE
THE COMPANY RETAIN THE RIGHT TO PERIODICALLY ALTER INFORMATION WITHIN THIS DRAWING SHEET AND WILL ATTE MPT TO NOTIFY ALL PARTIES WEIGHT
CONCERNED OF ANY CHANGES AND THE INFORMATION ON THI S SHEET SHOULD NOT BE REPRODUCED WITHOUT THIER WRITTEN CONSENT. PROPERTIES & TOLERANCES)
       WEIGHT: ) SCALE: 1:10 SHEET 1 OF 16 
