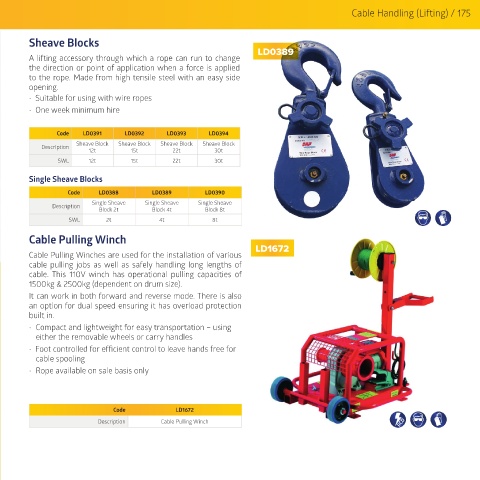

Cable Handling (Lifting) / 175


        Sheave Blocks                                            LD0389

        A lifting accessory through which a rope can run to change
        the direction or point of application when a force is applied
        to the rope. Made from high tensile steel with an easy side
        opening.
        •  Suitable for using with wire ropes
        •  One week minimum hire


               Code   LD0391    LD0392    LD0393     LD0394
           Description  Sheave Block   Sheave Block   Sheave Block   Sheave Block
                       12t       15t        22t       30t
               SWL     12t       15t        22t       30t

        Single Sheave Blocks
                  Code    LD0388       LD0389       LD0390
                        Single Sheave   Single Sheave   Single Sheave
              Description
                          Block 2t     Block 4t     Block 8t
                  SWL      2t            4t           8t
        Cable Pulling Winch                                     LD1672

        Cable Pulling Winches are used for the installation of various
        cable pulling jobs as well as safely handling long lengths of
        cable. This 110V winch has operational pulling capacities of
        1500kg & 2500kg (dependent on drum size).
        It can work in both forward and reverse mode. There is also
        an option for dual speed ensuring it has overload protection
        built in.
        •  Compact and lightweight for easy transportation – using
          either the removable wheels or carry handles
        •  Foot controlled for efficient control to leave hands free for
          cable spooling
        •  Rope available on sale basis only





                             Code            LD1672
                         Description     Cable Pulling Winch
