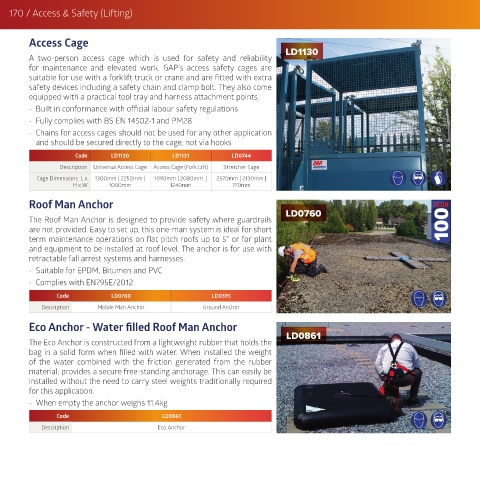

Page 172 - Full GAP Catalogue 2022

170 / Access & Safety (Lifting)

Access Cage LD1130

A two-person access cage which is used for safety and reliability
for maintenance and elevated work. GAP’s access safety cages are
suitable for use with a forklift truck or crane and are fitted with extra
safety devices including a safety chain and clamp bolt. They also come
equipped with a practical tool tray and harness attachment points.
• Built in conformance with official labour safety regulations
• Fully complies with BS EN 14502-1 and PM28
• Chains for access cages should not be used for any other application
and should be secured directly to the cage, not via hooks

Code LD1130 LD1131 LD0744
Description Universal Access Cage Access Cage (Fork Lift) Stretcher Cage
Cage Dimensions L x 1300mm | 2250mm | 1090mm | 2080mm | 2570mm | 2130mm |
H x W 1000mm 1240mm 770mm
Roof Man Anchor

The Roof Man Anchor is designed to provide safety where guardrails LD0760
are not provided. Easy to set up, this one-man system is ideal for short
term maintenance operations on flat pitch roofs up to 5° or for plant
and equipment to be installed at roof level. The anchor is for use with
retractable fall arrest systems and harnesses.
• Suitable for EPDM, Bitumen and PVC
• Complies with EN795E/2012
Code LD0760 LD0395
Description Mobile Man Anchor Ground Anchor

Eco Anchor - Water filled Roof Man Anchor
LD0861
The Eco Anchor is constructed from a lightweight rubber that holds the
bag in a solid form when filled with water. When installed the weight
of the water combined with the friction generated from the rubber
material, provides a secure free-standing anchorage. This can easily be
installed without the need to carry steel weights traditionally required
for this application.
• When empty the anchor weighs 11.4kg
Code LD0861
Description Eco Anchor
