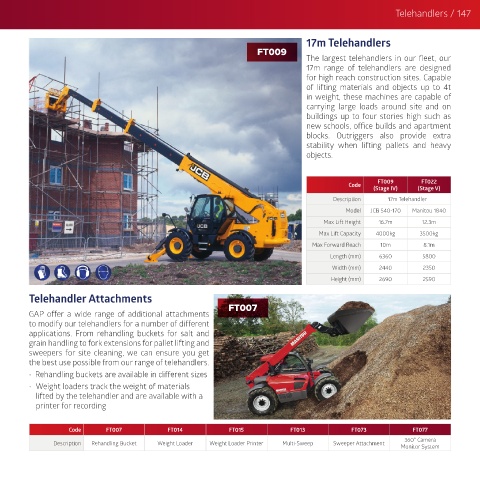

Page 149 - Full GAP Catalogue 2022

Telehandlers / 147

17m Telehandlers
FT009
The largest telehandlers in our fleet, our
17m range of telehandlers are designed
for high reach construction sites. Capable
of lifting materials and objects up to 4t
in weight, these machines are capable of
carrying large loads around site and on
buildings up to four stories high such as
new schools, office builds and apartment
blocks. Outriggers also provide extra
stability when lifting pallets and heavy
objects.

Code FT009 FT022
(Stage IV) (Stage V)
Description 17m Telehandler
Model JCB 540-170 Manitou 1840
Max Lift Height 16.7m 12.3m
Max Lift Capacity 4000kg 3500kg
Max Forward Reach 10m 8.1m
Length (mm) 6360 5800
Width (mm) 2440 2350
Height (mm) 2690 2590
Telehandler Attachments

GAP offer a wide range of additional attachments FT007
to modify our telehandlers for a number of different
applications. From rehandling buckets for salt and
grain handling to fork extensions for pallet lifting and
sweepers for site cleaning, we can ensure you get
the best use possible from our range of telehandlers.
• Rehandling buckets are available in different sizes
• Weight loaders track the weight of materials
lifted by the telehandler and are available with a
printer for recording

Code FT007 FT014 FT015 FT013 FT073 FT077
360° Camera
Description Rehandling Bucket Weight Loader Weight Loader Printer Multi-Sweep Sweeper Attachment
Monitor System
