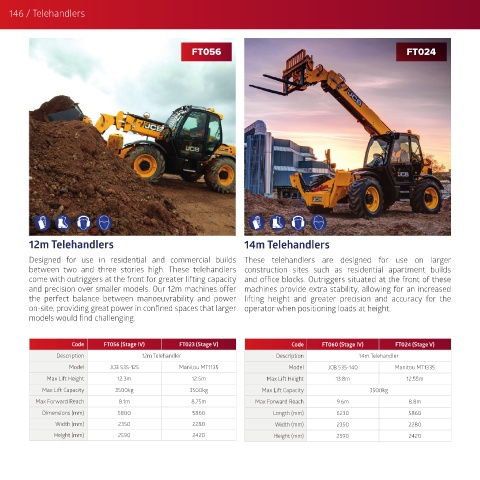

146 / Telehandlers

FT056 FT060 FT024

12m Telehandlers 14m Telehandlers
Designed for use in residential and commercial builds These telehandlers are designed for use on larger
between two and three stories high. These telehandlers construction sites such as residential apartment builds
come with outriggers at the front for greater lifting capacity and office blocks. Outriggers situated at the front of these
and precision over smaller models. Our 12m machines offer machines provide extra stability, allowing for an increased
the perfect balance between manoeuvrability and power lifting height and greater precision and accuracy for the
on-site, providing great power in confined spaces that larger operator when positioning loads at height.
models would find challenging.

Code FT056 (Stage IV) FT023 (Stage V) Code FT060 (Stage IV) FT024 (Stage V)
Description 12m Telehandler Description 14m Telehandler
Model JCB 535-125 Manitou MT1135 Model JCB 535-140 Manitou MT1335
Max Lift Height 12.3m 12.5m Max Lift Height 13.8m 12.55m
Max Lift Capacity 3500kg 3500kg Max Lift Capacity 3500kg
Max Forward Reach 8.1m 8.75m Max Forward Reach 9.6m 8.8m
Dimensions (mm) 5800 5860 Length (mm) 6230 5860
Width (mm) 2350 2280 Width (mm) 2350 2280
Height (mm) 2590 2420 Height (mm) 2590 2420
