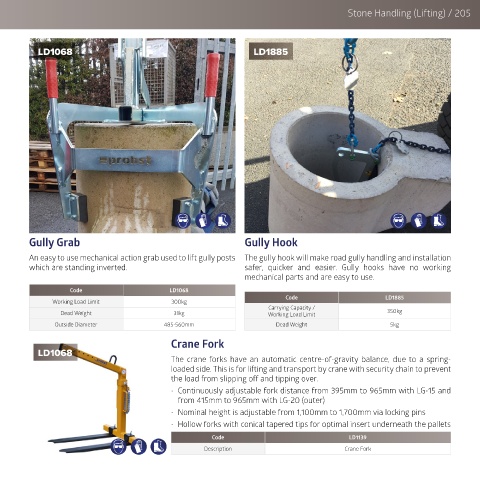

Page 207 - Full GAP Catalogue 2020 (digital)

Stone Handling (Lifting) / 205

LD1068 LD1885

Gully Grab Gully Hook

An easy to use mechanical action grab used to lift gully posts The gully hook will make road gully handling and installation
which are standing inverted. safer, quicker and easier. Gully hooks have no working
mechanical parts and are easy to use.
Code LD1068
Code LD1885
Working Load Limit 300kg
Carrying Capacity /
Dead Weight 31kg Working Load Limit 350kg
Outside Diameter 485-560mm Dead Weight 5kg
Crane Fork
LD1068
The crane forks have an automatic centre-of-gravity balance, due to a spring-
loaded side. This is for lifting and transport by crane with security chain to prevent
the load from slipping off and tipping over.
• Continuously adjustable fork distance from 395mm to 965mm with LG-15 and
from 415mm to 965mm with LG-20 (outer)
• Nominal height is adjustable from 1,100mm to 1,700mm via locking pins
• Hollow forks with conical tapered tips for optimal insert underneath the pallets
Code LD1139
Description Crane Fork
