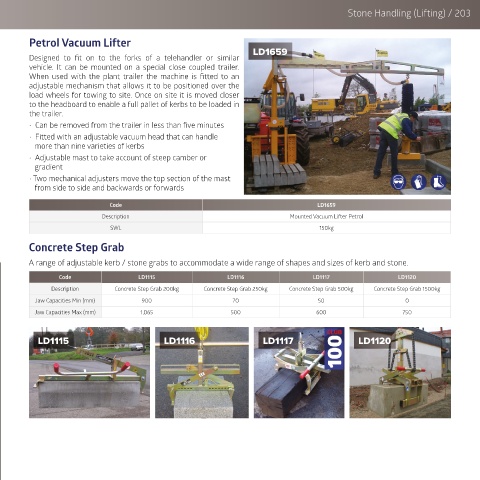

Stone Handling (Lifting) / 203

Petrol Vacuum Lifter

Designed to fit on to the forks of a telehandler or similar LD1659
vehicle. It can be mounted on a special close coupled trailer.
When used with the plant trailer the machine is fitted to an
adjustable mechanism that allows it to be positioned over the
load wheels for towing to site. Once on site it is moved closer
to the headboard to enable a full pallet of kerbs to be loaded in
the trailer.
• Can be removed from the trailer in less than five minutes
• Fitted with an adjustable vacuum head that can handle
more than nine varieties of kerbs
• Adjustable mast to take account of steep camber or
gradient
• Two mechanical adjusters move the top section of the mast
from side to side and backwards or forwards

Code LD1659
Description Mounted Vacuum Lifter Petrol
SWL 150kg
Concrete Step Grab

A range of adjustable kerb / stone grabs to accommodate a wide range of shapes and sizes of kerb and stone.
Code LD1115 LD1116 LD1117 LD1120
Description Concrete Step Grab 200kg Concrete Step Grab 250kg Concrete Step Grab 500kg Concrete Step Grab 1500kg
Jaw Capacities Min (mm) 900 70 50 0
Jaw Capacities Max (mm) 1,065 500 600 750

LD1115 LD1116 LD1117 LD1120
