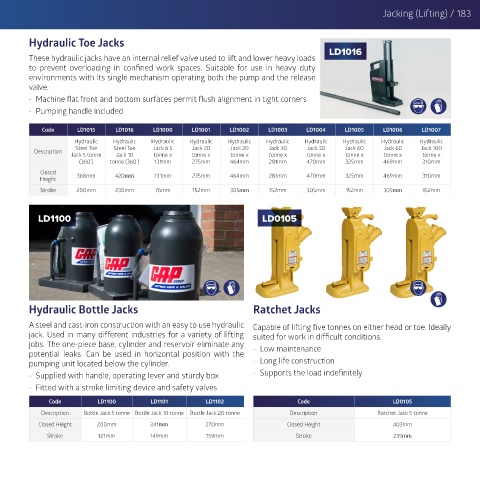

Jacking (Lifting) / 183

Hydraulic Toe Jacks LD1016

These hydraulic jacks have an internal relief valve used to lift and lower heavy loads
to prevent overloading in confined work spaces. Suitable for use in heavy duty
environments with its single mechanism operating both the pump and the release
valve.
• Machine flat front and bottom surfaces permit flush alignment in tight corners
• Pumping handle included

Code LD1015 LD1016 LD1000 LD1001 LD1002 LD1003 LD1004 LD1005 LD1006 LD1007
Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Steel Toe Steel Toe Jack 6.5 Jack 20 Jack 20 Jack 30 Jack 30 Jack 60 Jack 60 Jack 100
Description
Jack 5 tonne Jack 10 tonne x tonne x tonne x tonne x tonne x tonne x tonne x tonne x
(360’) tonne (360’) 131mm 275mm 464mm 281mm 470mm 325mm 469mm 310mm
Closed 368mm 420mm 131mm 275mm 464mm 281mm 470mm 325mm 469mm 310mm
Height
Stroke 200mm 230mm 76mm 152mm 305mm 152mm 305mm 152mm 305mm 152mm

LD1100 LD0105

Hydraulic Bottle Jacks Ratchet Jacks

A steel and cast-iron construction with an easy to use hydraulic Capable of lifting five tonnes on either head or toe. Ideally
jack. Used in many different industries for a variety of lifting suited for work in difficult conditions.
jobs. The one-piece base, cylinder and reservoir eliminate any • Low maintenance
potential leaks. Can be used in horizontal position with the
pumping unit located below the cylinder. • Long life construction
• Supplied with handle, operating lever and sturdy box • Supports the load indefinitely
• Fitted with a stroke limiting device and safety valves

Code LD1100 LD1101 LD1102 Code LD0105
Description Bottle Jack 5 tonne Bottle Jack 10 tonne Bottle Jack 20 tonne Description Ratchet Jack 5 tonne
Closed Height 200mm 241mm 270mm Closed Height 403mm
Stroke 121mm 149mm 159mm Stroke 235mm
