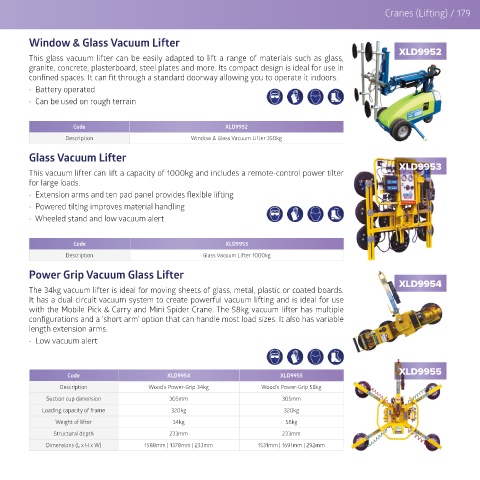

Page 181 - Full GAP Catalogue 2020 (digital)

Cranes (Lifting) / 179

Window & Glass Vacuum Lifter XLD9952

This glass vacuum lifter can be easily adapted to lift a range of materials such as glass,
granite, concrete, plasterboard, steel plates and more. Its compact design is ideal for use in
confined spaces. It can fit through a standard doorway allowing you to operate it indoors.
• Battery operated
• Can be used on rough terrain

Code XLD9952
Description Window & Glass Vacuum Lifter 350kg
Glass Vacuum Lifter

This vacuum lifter can lift a capacity of 1000kg and includes a remote-control power tilter XLD9953
for large loads.
• Extension arms and ten pad panel provides flexible lifting
• Powered tilting improves material handling
• Wheeled stand and low vacuum alert

Code XLD9953
Description Glass Vacuum Lifter 1000kg
Power Grip Vacuum Glass Lifter

The 34kg vacuum lifter is ideal for moving sheets of glass, metal, plastic or coated boards. XLD9954
It has a dual circuit vacuum system to create powerful vacuum lifting and is ideal for use
with the Mobile Pick & Carry and Mini Spider Crane. The 58kg vacuum lifter has multiple
configurations and a ‘short arm’ option that can handle most load sizes. It also has variable
length extension arms.
• Low vacuum alert

XLD9955
Code XLD9954 XLD9955
Description Wood’s Power-Grip 34kg Wood’s Power-Grip 58kg
Suction cup dimension 305mm 305mm
Loading capacity of frame 320kg 320kg
Weight of lifter 34kg 58kg
Structural depth 233mm 233mm
Dimensions (L x H x W) 1588mm | 1378mm | 233mm 1531mm | 1691mm | 292mm
