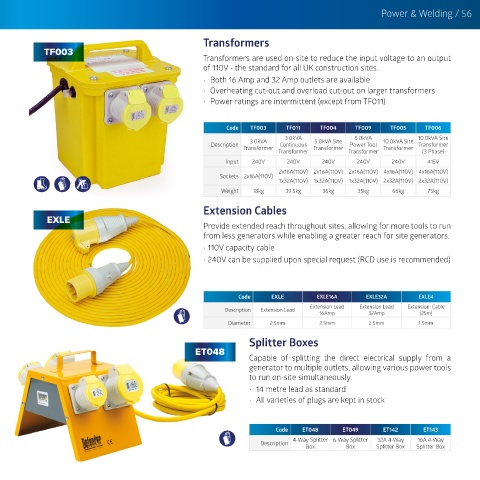

Page 57 - Tools E-Catalogue

Power & Welding / 56

Transformers
TF003
Transformers are used on-site to reduce the input voltage to an output
of 110V - the standard for all UK construction sites.
• Both 16 Amp and 32 Amp outlets are available
• Overheating cut-out and overload cut-out on larger transformers
• Power ratings are intermittent (except from TF011)

Code TF003 TF011 TF004 TF009 TF005 TF006
3.0kVA 5.0kVA 10.0kVA Site
Description 3.0kVA Continuous 5.0kVA Site Power Tool 10.0kVA Site Transformer
Transformer Transformer Transformer
Transformer Transformer (3 Phase)
Input 240V 240V 240V 240V 240V 415V
2x16A(110V) 2x16A(110V) 2x16A(110V) 4x16A(110V) 4x16A(110V)
Sockets 2x16A(110V)
1x32A(110V) 1x32A(110V) 1x32A(110V) 2x32A(110V) 2x32A(110V)
Weight 18kg 39.5kg 36kg 35kg 66kg 75kg
Extension Cables
EXLE
Provide extended reach throughout sites, allowing for more tools to run
from less generators while enabling a greater reach for site generators.
• 110V capacity cable
• 240V can be supplied upon special request (RCD use is recommended)

Code EXLE EXLE16A EXLE32A EXLE4
Extension Lead Extension Lead Extension Cable
Description Extension Lead 16Amp 32Amp (25m)
Diameter 2.5mm 2.5mm 2.5mm 1.5mm
Splitter Boxes
ET048
Capable of splitting the direct electrical supply from a
generator to multiple outlets, allowing various power tools
to run on-site simultaneously.
• 14 metre lead as standard
• All varieties of plugs are kept in stock

Code ET048 ET049 ET142 ET143
4-Way Splitter 6-Way Splitter 32A 4-Way 16A 4-Way
Description
Box Box Splitter Box Splitter Box
