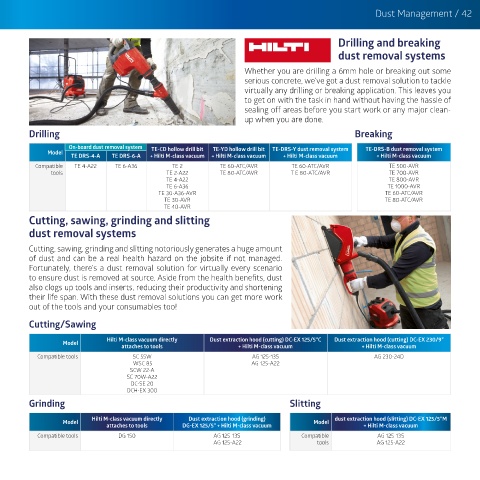

Page 43 - Tools E-Catalogue

Dust Management / 42

Drilling and breaking
dust removal systems

Whether you are drilling a 6mm hole or breaking out some
serious concrete, we’ve got a dust removal solution to tackle
virtually any drilling or breaking application. This leaves you
to get on with the task in hand without having the hassle of
sealing off areas before you start work or any major clean-
up when you are done.
Drilling Breaking
On-board dust removal system TE-CD hollow drill bit TE-YD hollow drill bit TE-DRS-Y dust removal system TE-DRS-B dust removal system

Model TE DRS-4-A TE DRS-6-A + Hilti M-class vacuum + Hilti M-class vacuum + Hilti M-class vacuum + Hilti M-class vacuum
Compatible TE 4-A22 TE 6-A36 TE 2 TE 60-ATC/AVR TE 60-ATC/AVR TE 500-AVR
tools TE 2-A22 TE 80-ATC/AVR T E 80-ATC/AVR TE 700-AVR
TE 4-A22 TE 800-AVR
TE 6-A36 TE 1000-AVR
TE 30-A36-AVR TE 60-ATC/AVR
TE 30-AVR TE 80-ATC/AVR
TE 40-AVR
Cutting, sawing, grinding and slitting
dust removal systems

Cutting, sawing, grinding and slitting notoriously generates a huge amount
of dust and can be a real health hazard on the jobsite if not managed.
Fortunately, there’s a dust removal solution for virtually every scenario
to ensure dust is removed at source. Aside from the health benefits, dust
also clogs up tools and inserts, reducing their productivity and shortening
their life span. With these dust removal solutions you can get more work
out of the tools and your consumables too!
Cutting/Sawing

Model Hilti M-class vacuum directly Dust extraction hood (cutting) DC-EX 125/5”C Dust extraction hood (cutting) DC-EX 230/9”
attaches to tools + Hilti M-class vacuum + Hilti M-class vacuum
Compatible tools SC 55W AG 125-13S AG 230-24D
WSC 85 AG 125-A22
SCW 22-A
SC 70W-A22
DC-SE 20
DCH-EX 300
Grinding Slitting

Model Hilti M-class vacuum directly Dust extraction hood (grinding) Model dust extraction hood (slitting) DC-EX 125/5”M
attaches to tools DG-EX 125/5” + Hilti M-class vacuum + Hilti M-class vacuum
Compatible tools DG 150 AG 125-13S Compatible AG 125-13S
AG 125-A22 tools AG 125-A22
