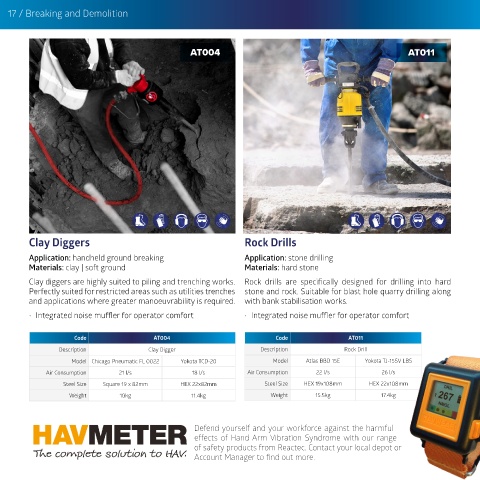

Page 18 - Tools E-Catalogue

17 / Breaking and Demolition

AT004 AT011

Clay Diggers Rock Drills

Application: handheld ground breaking Application: stone drilling
Materials: clay | soft ground Materials: hard stone
Clay diggers are highly suited to piling and trenching works. Rock drills are specifically designed for drilling into hard
Perfectly suited for restricted areas such as utilities trenches stone and rock. Suitable for blast hole quarry drilling along
and applications where greater manoeuvrability is required. with bank stabilisation works.
• Integrated noise muffler for operator comfort • Integrated noise muffler for operator comfort

Code AT004 Code AT011
Description Clay Digger Description Rock Drill
Model Chicago Pneumatic FL 0022 Yokota TCD-20 Model Atlas BBD 15E Yokota TJ-15SV LBS
Air Consumption 21 l/s 18 l/s Air Consumption 22 l/s 26 l/s
Steel Size Square 19 x 82mm HEX 22x82mm Steel Size HEX 19x108mm HEX 22x108mm
Weight 10kg 11.4kg Weight 15.5kg 17.4kg

Defend yourself and your workforce against the harmful
effects of Hand Arm Vibration Syndrome with our range
of safety products from Reactec. Contact your local depot or
Account Manager to find out more.
