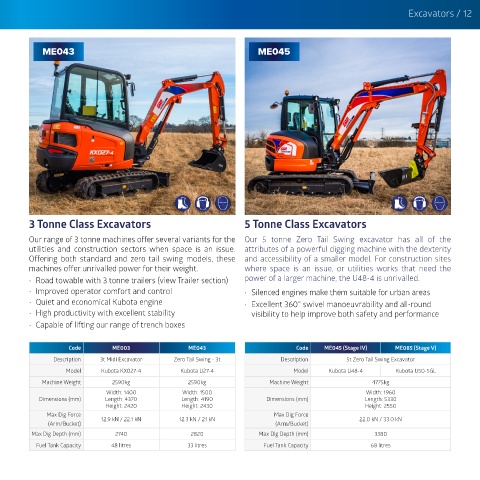

Page 13 - Plant E-Catalogue

Excavators / 12

ME043 ME045

3 Tonne Class Excavators 5 Tonne Class Excavators
Our range of 3 tonne machines offer several variants for the Our 5 tonne Zero Tail Swing excavator has all of the
utilities and construction sectors when space is an issue. attributes of a powerful digging machine with the dexterity
Offering both standard and zero tail swing models, these and accessibility of a smaller model. For construction sites
machines offer unrivalled power for their weight. where space is an issue, or utilities works that need the
• Road towable with 3 tonne trailers (view Trailer section) power of a larger machine, the U48-4 is unrivalled.
• Improved operator comfort and control • Silenced engines make them suitable for urban areas
• Quiet and economical Kubota engine • Excellent 360° swivel manoeuvrability and all-round
• High productivity with excellent stability visibility to help improve both safety and performance
• Capable of lifting our range of trench boxes

Code ME003 ME043 Code ME045 (Stage IV) ME085 (Stage V)
Description 3t Midi Excavator Zero Tail Swing - 3t Description 5t Zero Tail Swing Excavator
Model Kubota KX027-4 Kubota U27-4 Model Kubota U48-4 Kubota U50-5GL
Machine Weight 2590kg 2590kg Machine Weight 4775kg
Width: 1400 Width: 1500 Width: 1960
Dimensions (mm) Length: 4370 Length: 4190 Dimensions (mm) Length: 5330
Height: 2420 Height: 2430 Height: 2550
Max Dig Force Max Dig Force
(Arm/Bucket) 12.9 kN / 22.1 kN 12.3 kN / 21 kN (Arm/Bucket) 22.0 kN / 33.0 kN
Max Dig Depth (mm) 2740 2820 Max Dig Depth (mm) 3380
Fuel Tank Capacity 48 litres 33 litres Fuel Tank Capacity 68 litres
