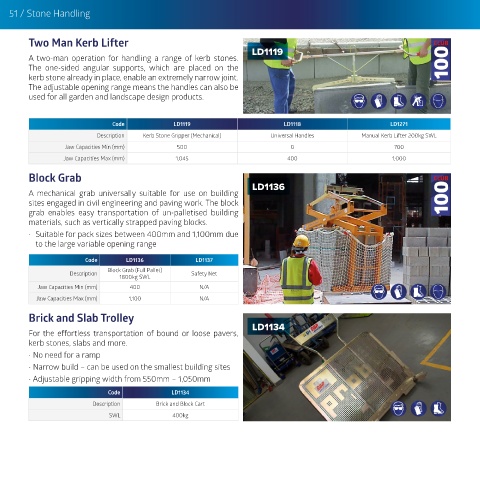

Page 52 - Lifting E-Catalogue

51 / Stone Handling

Two Man Kerb Lifter LD1119

A two-man operation for handling a range of kerb stones.
The one-sided angular supports, which are placed on the
kerb stone already in place, enable an extremely narrow joint.
The adjustable opening range means the handles can also be
used for all garden and landscape design products.

Code LD1119 LD1118 LD1271
Description Kerb Stone Gripper (Mechanical) Universal Handles Manual Kerb Lifter 200kg SWL
Jaw Capacities Min (mm) 500 0 700
Jaw Capacities Max (mm) 1,045 400 1,000
Block Grab

A mechanical grab universally suitable for use on building LD1136
sites engaged in civil engineering and paving work. The block
grab enables easy transportation of un-palletised building
materials, such as vertically strapped paving blocks.
• Suitable for pack sizes between 400mm and 1,100mm due
to the large variable opening range

Code LD1136 LD1137
Block Grab (Full Pallet)
Description 1800kg SWL Safety Net
Jaw Capacities Min (mm) 400 N/A
Jaw Capacities Max (mm) 1,100 N/A
Brick and Slab Trolley LD1134

For the effortless transportation of bound or loose pavers,
kerb stones, slabs and more.
• No need for a ramp
• Narrow build – can be used on the smallest building sites
• Adjustable gripping width from 550mm – 1,050mm
Code LD1134
Description Brick and Block Cart
SWL 400kg
